$20,995.00 CAD Funds
Choose an option below:

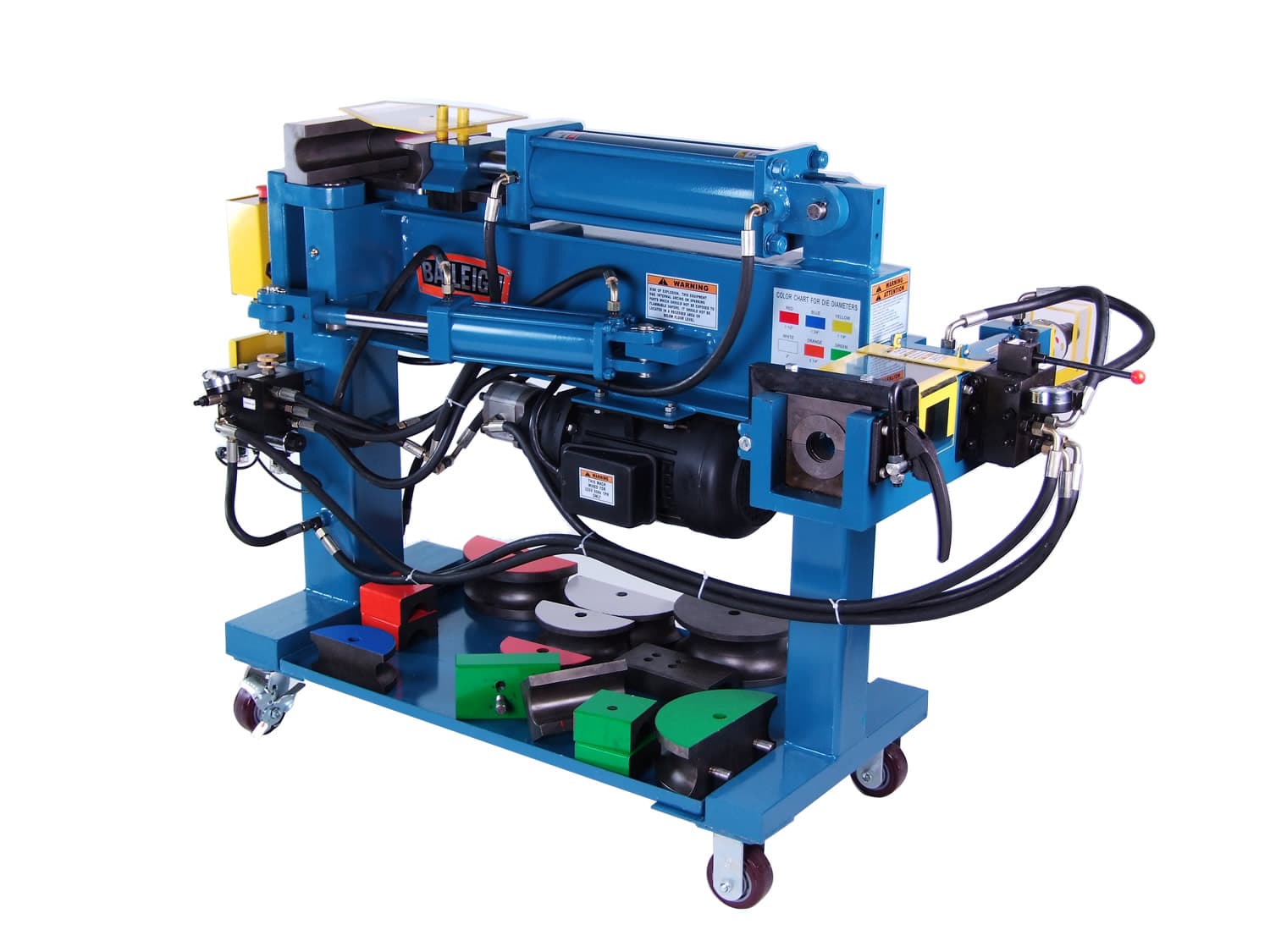

The Baileigh EB-300 Exhaust Bender is designed for automotive repair shops that need to bend light gauge tubing without collapsing the material. It features a hydraulic system with a compression bender that uses a large ram and two hydraulic cylinders to create precise bends. The machine includes a tube end forming station with tooling for expanding, flaring, and swaging, as well as creating ball joints and flanges. The EB-300 is user-friendly with knee controls and comes with a tooling tray and oil sight glass for maintenance.
| Item Number | EB-300 |
|---|---|
| Motor Hp | 4 hp |

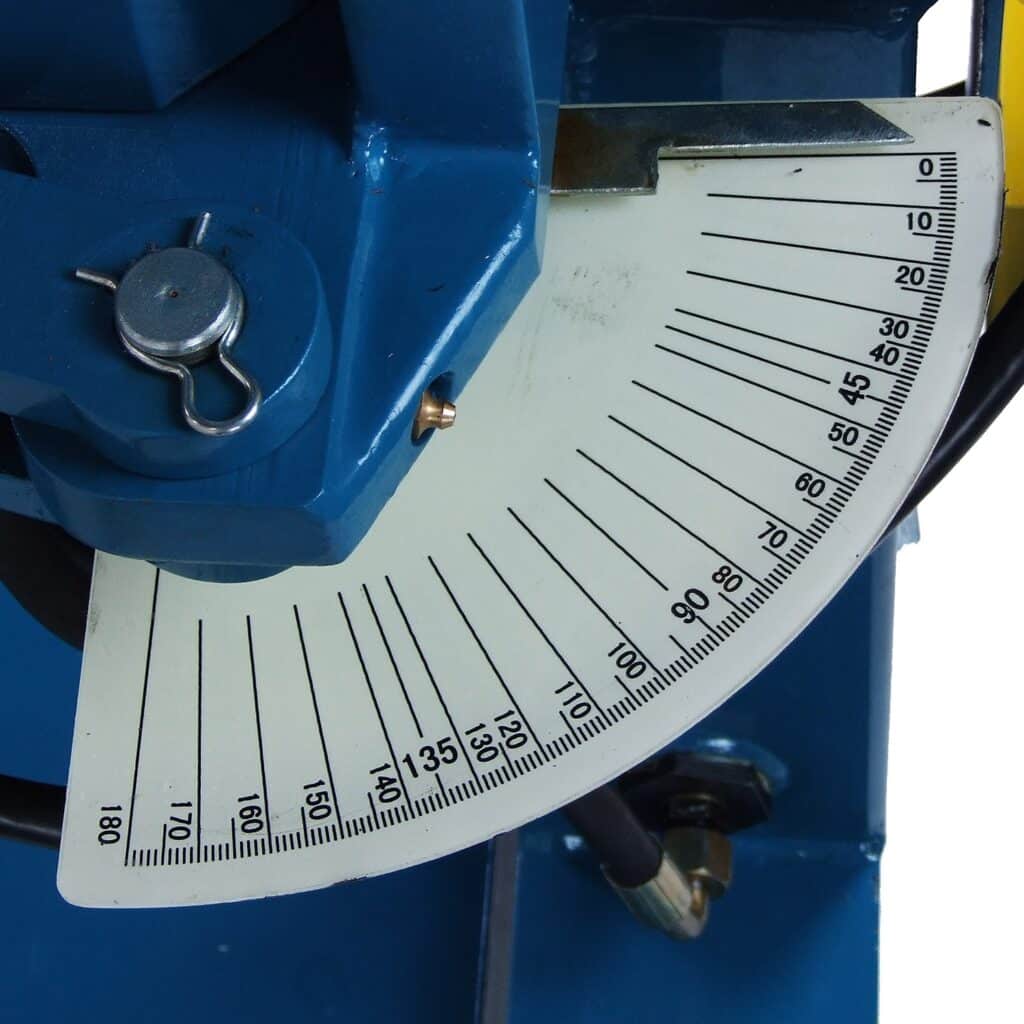

| Degree of Bend (Max) | 17210 |
| Capacity Round OD (Mild Steel) | 1-1/2″ up to 3″ OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required) |
| Max. Clr | 5″ |
| Power | 220V / 1-phase |
| Shipping Weight | 1640lbs |
| Shipping Dimensions (Inches) | 69x32x53 |
| Tooling Included: | Click Here! |
* specifications subject to change without notice.
Have an automotive repair shop that is constantly outsourcing your exhaust jobs because you don’t have the right tube bender for the job? If that is the case look, at the EB-300 exhaust bender from Baileigh Industrial. This just might be tool you need to add profitability back to your jobs. The EB-300 exhaust pipe bender comes with everything you need to get started.

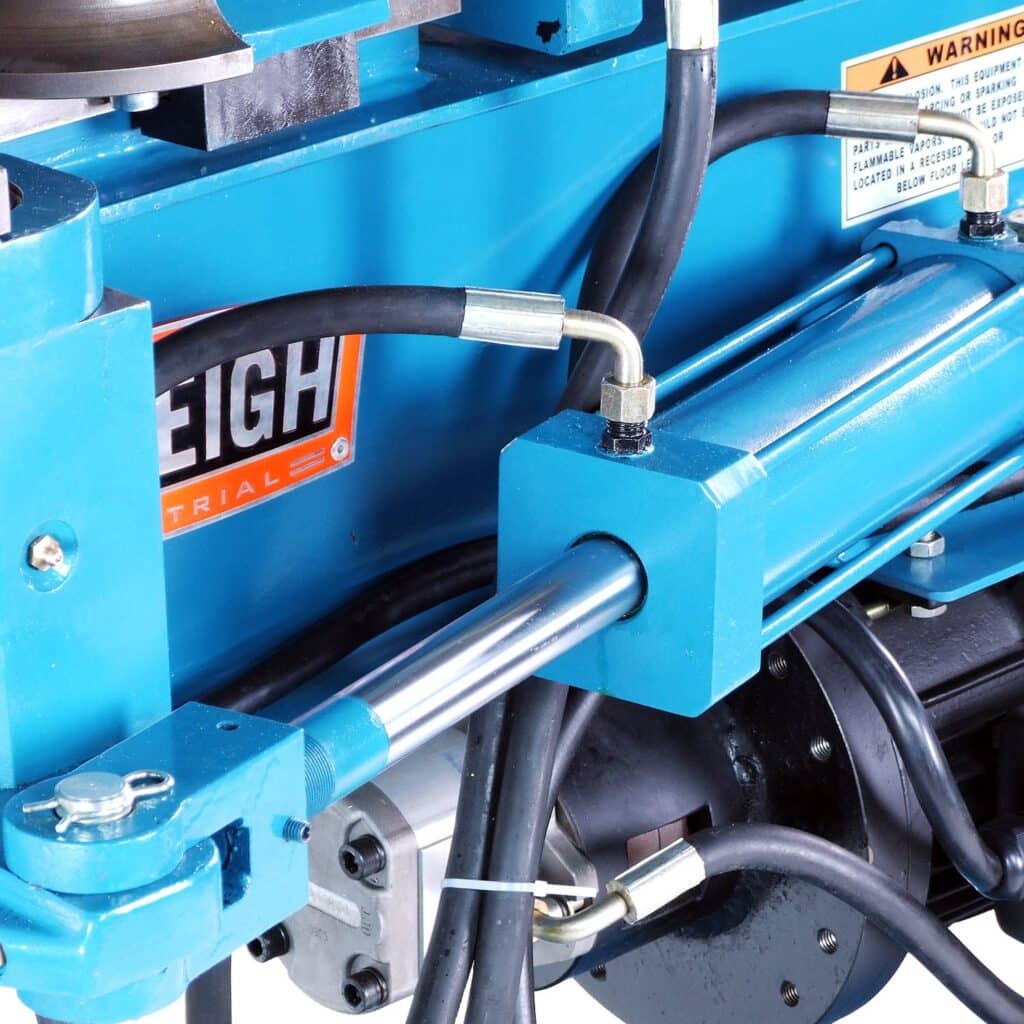

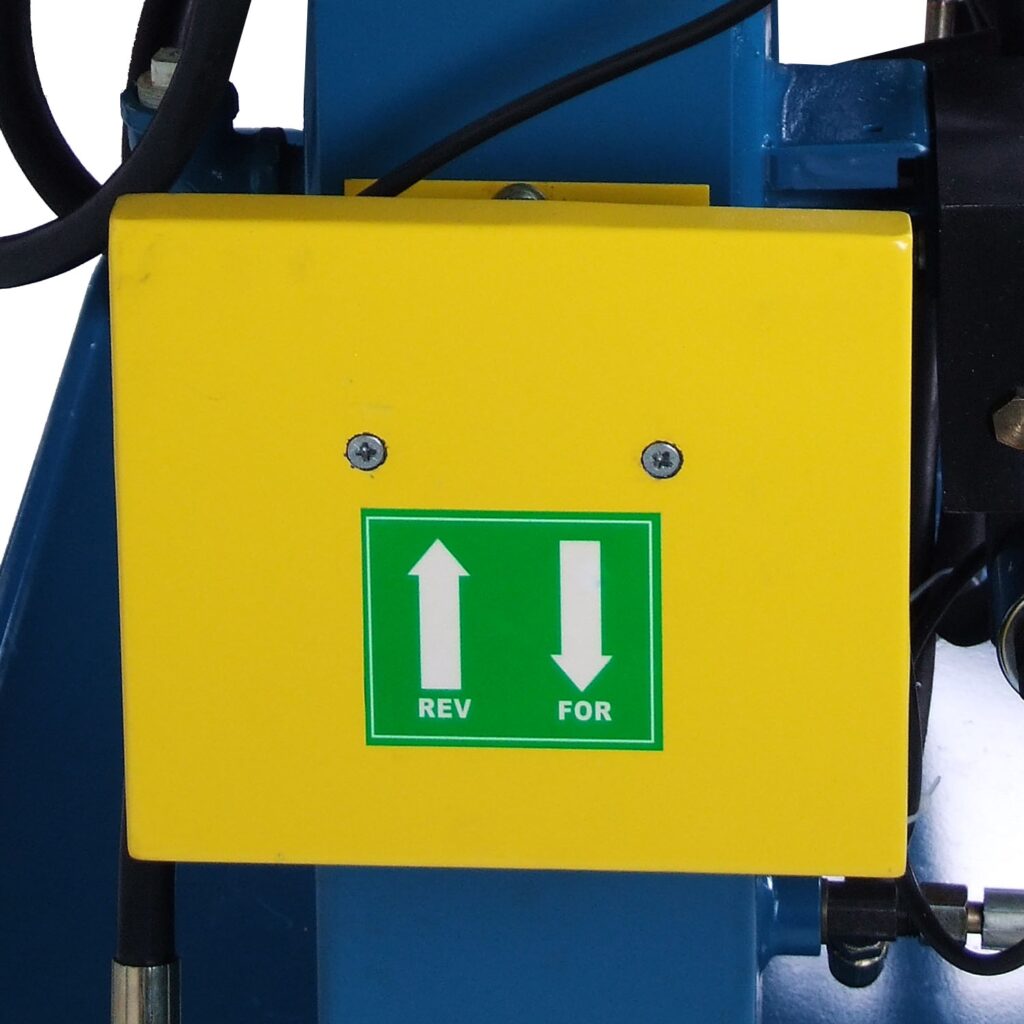

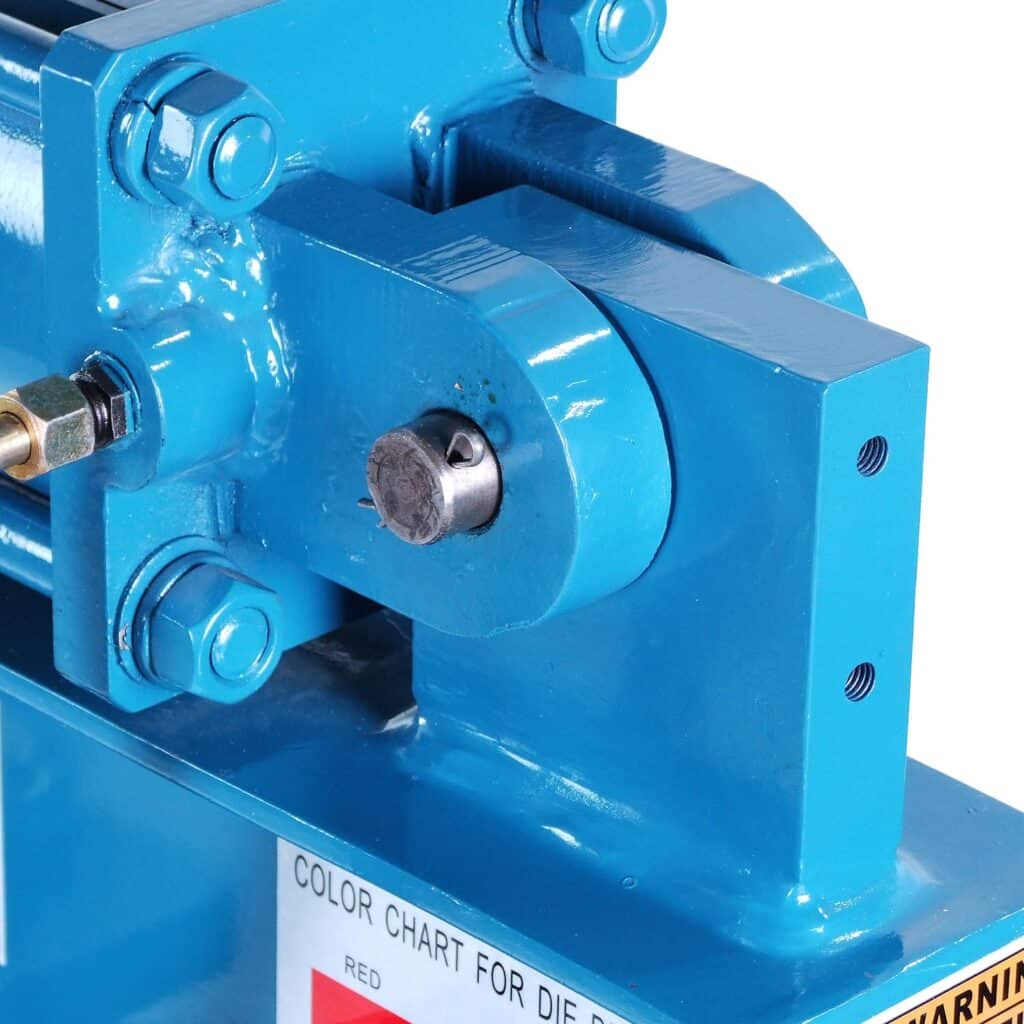

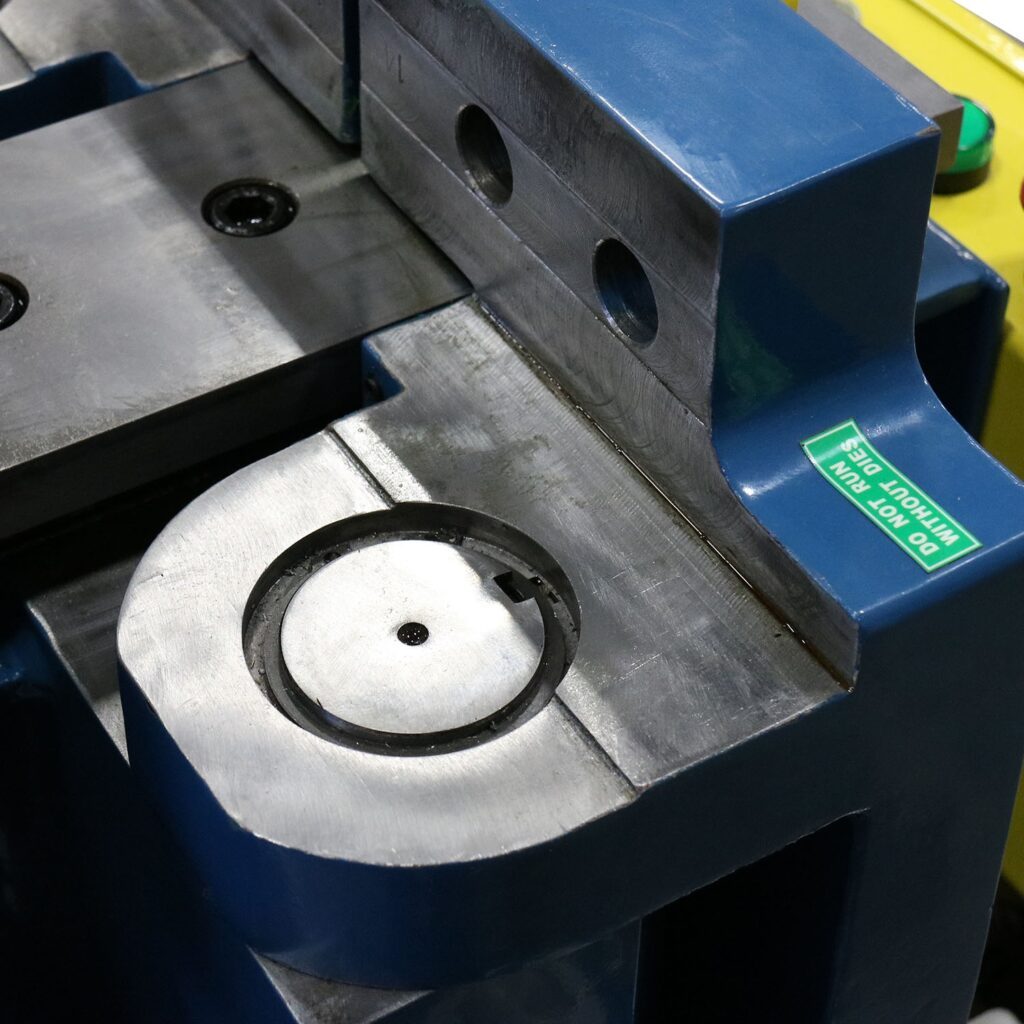

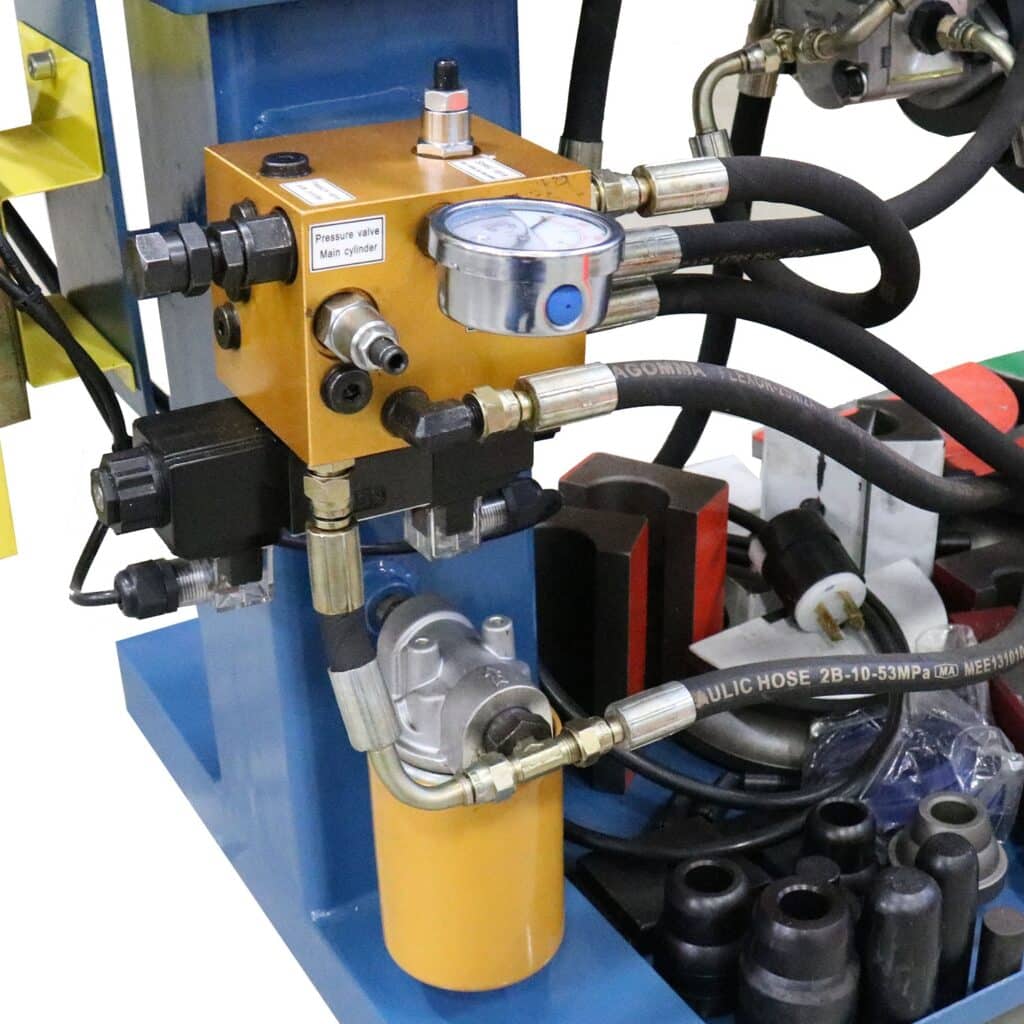

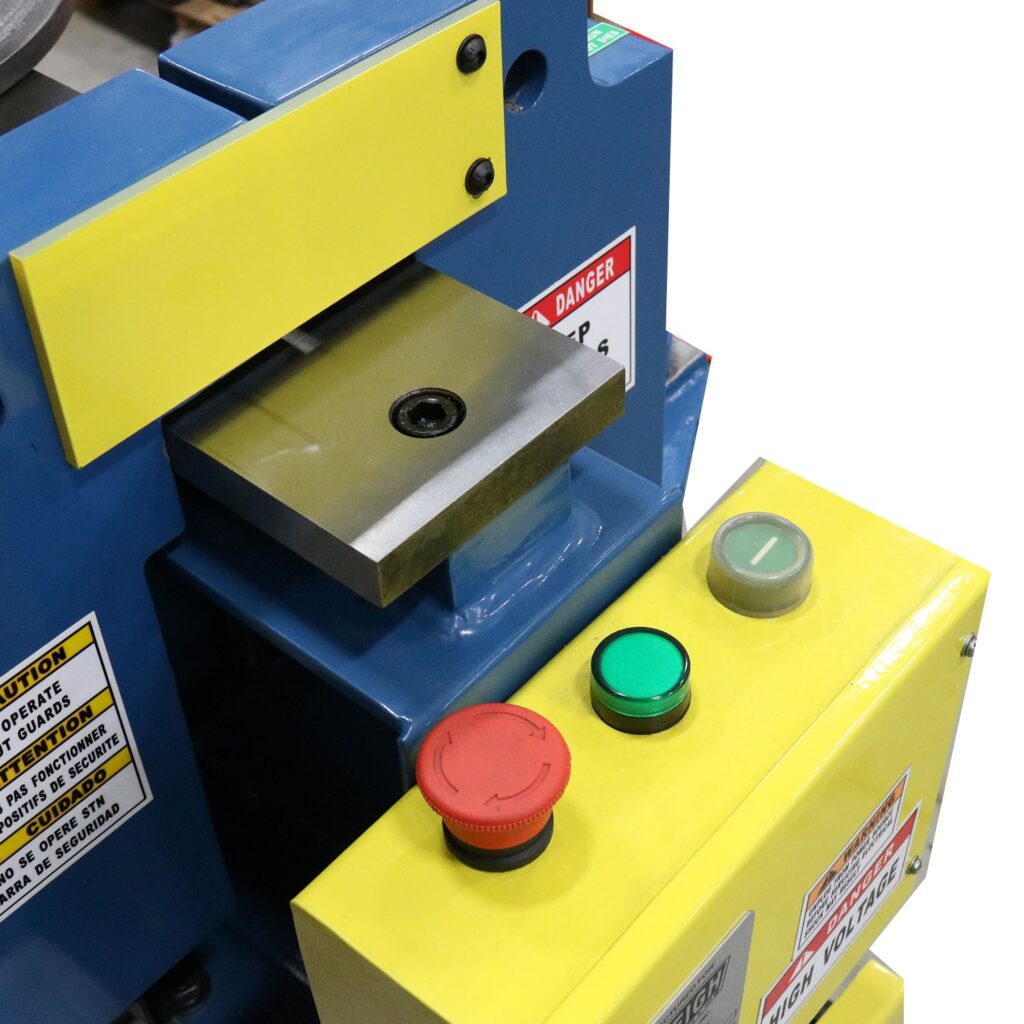

For bending, the EB-300 exhaust bender comes with standard radius tooling from 1-1/2″ up to 3″ OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required). The EB-300 exhaust pipe bender is considered a compression bender as it uses one large hydraulic ram to push the inside radius die into the compression assisted outside counter dies. The outside dies have two hydraulic cylinders that applies pressure at the point of bend on the inside radius die. The end result is that the machine can bend light gauge tubing without folding the material in half. The EB-300 exhaust pipe bender requires 220 volts of single phase power is operated using knee controls, allowing hands to be kept free for material control.

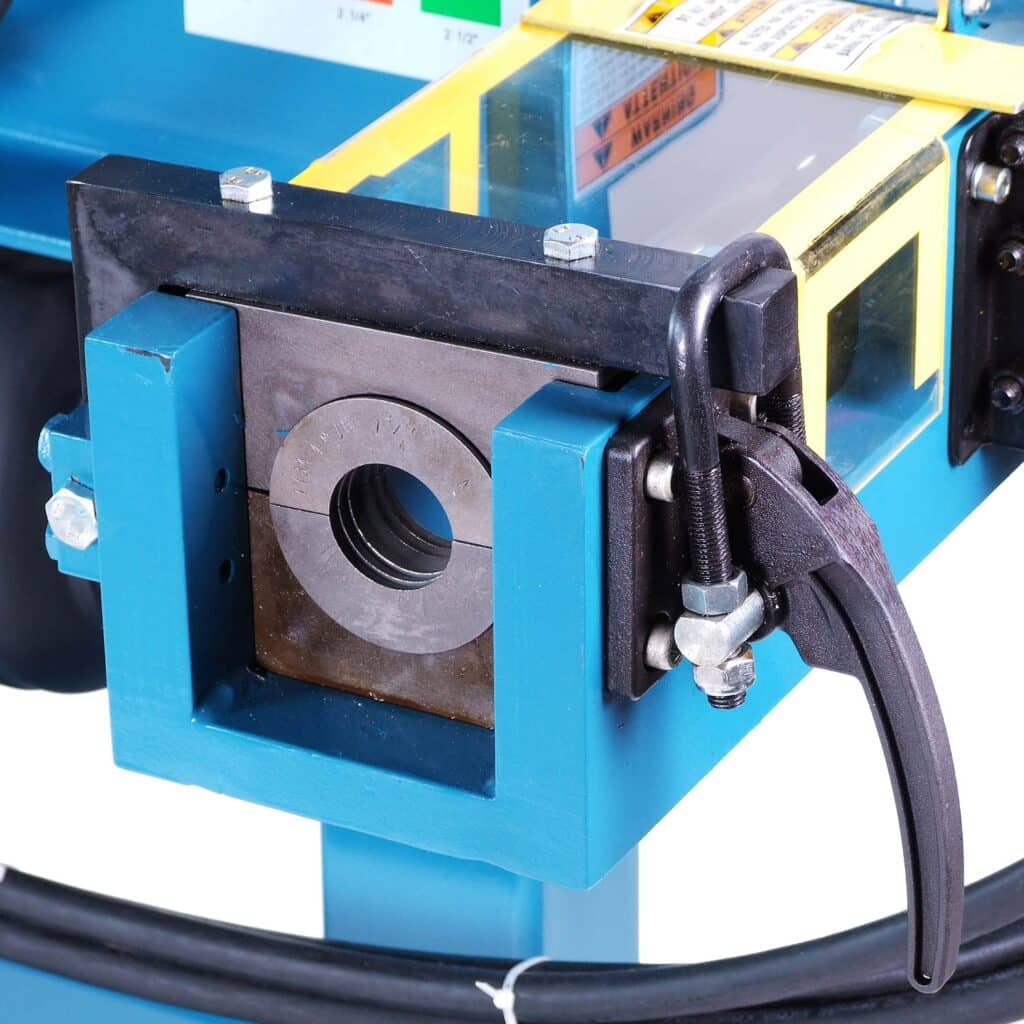

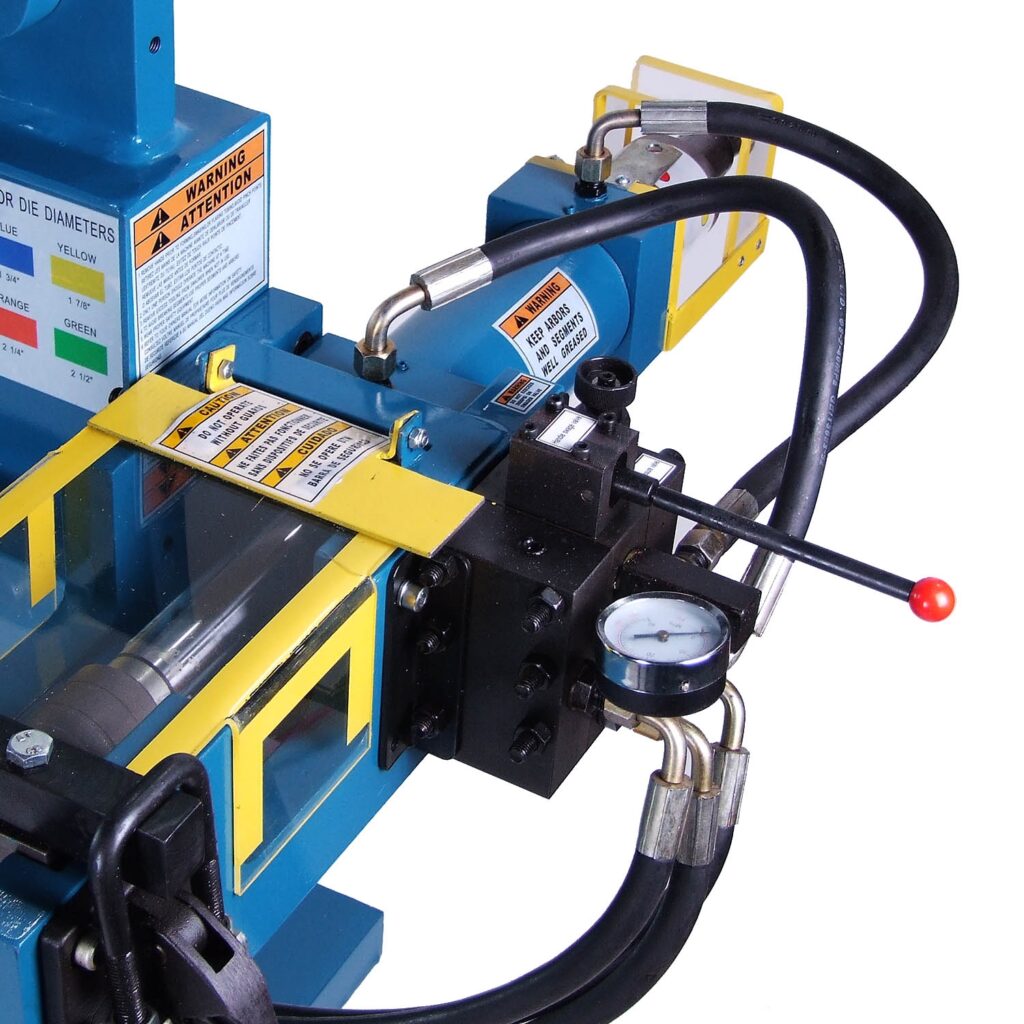

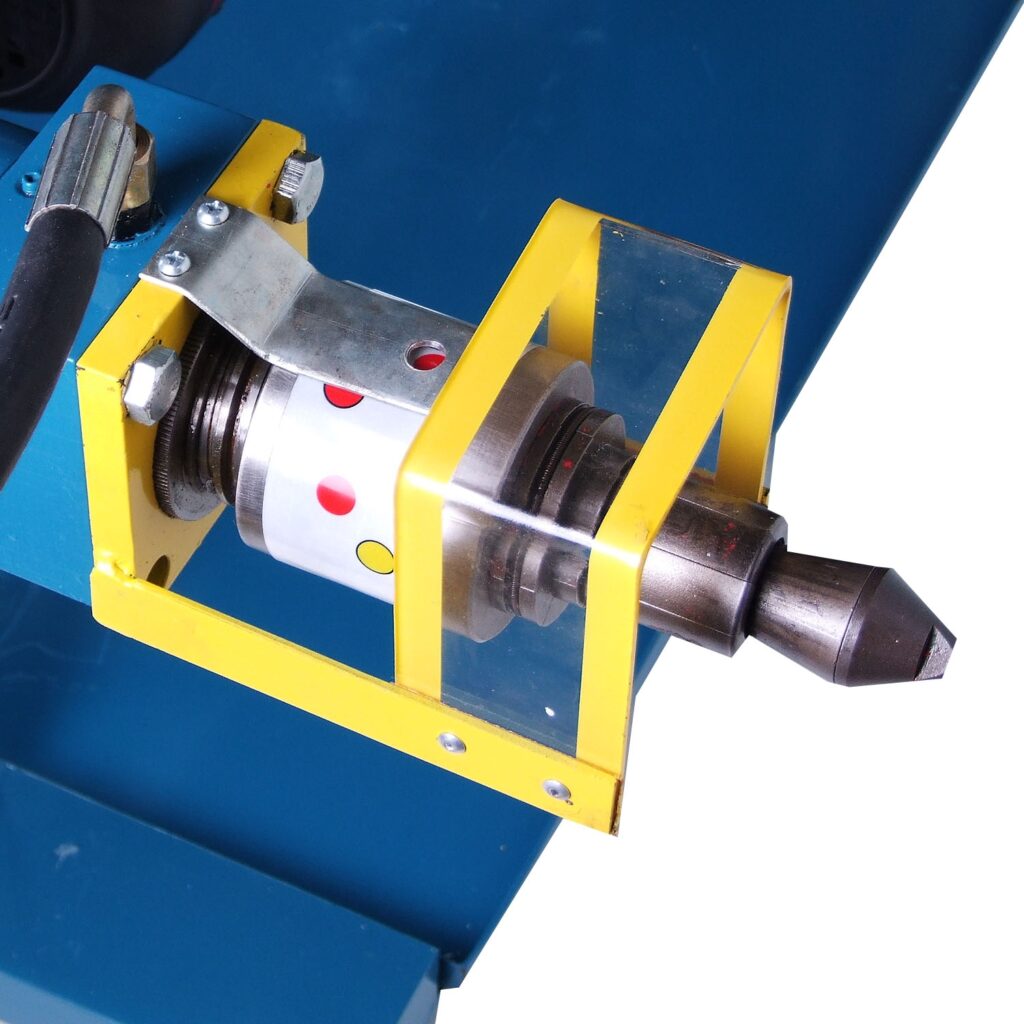

This exhaust tube bender also comes equipped with tube end forming station. This station includes tooling to expand, flare and swage the tubing. It also allows the operator to create ball joints and flanges.

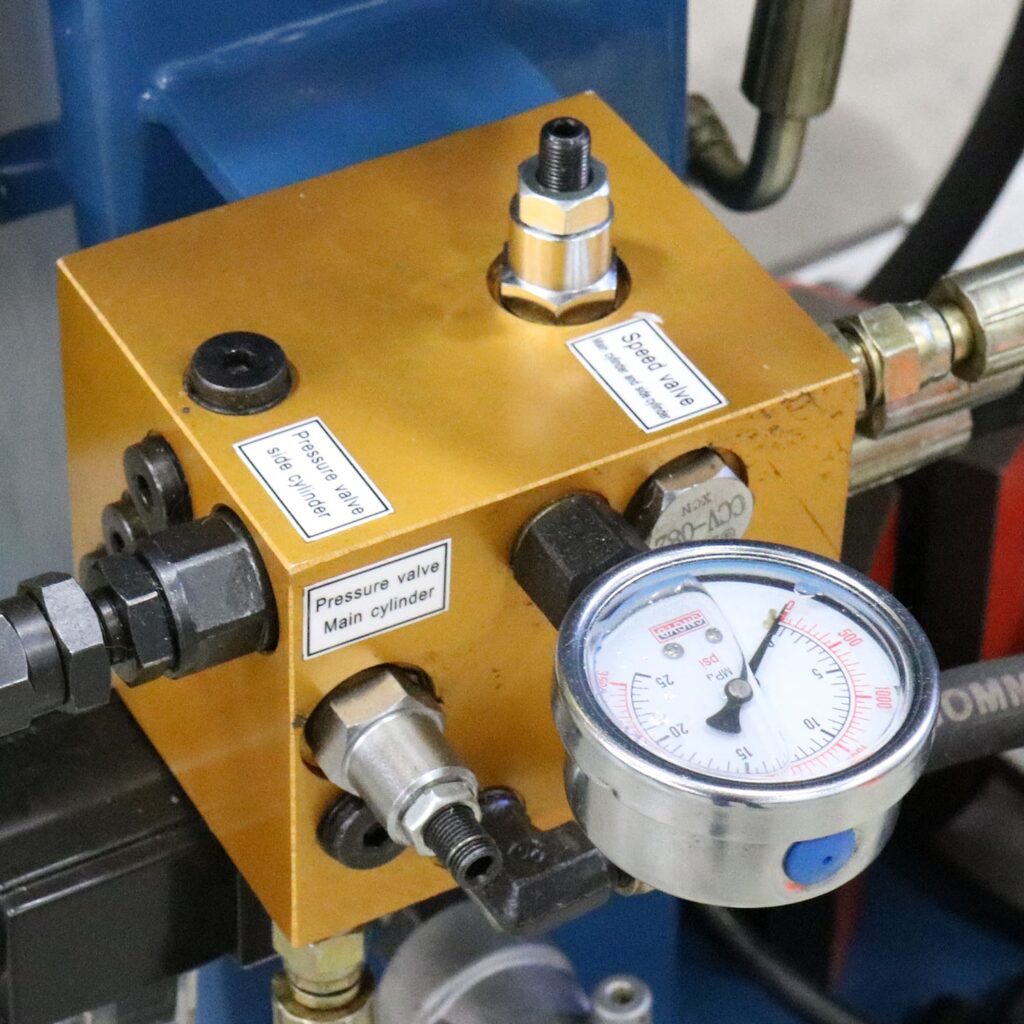

The EB-300 exhaust tube bender comes filled with hydraulic fluid and has an oil sight glass to ensure the proper level is maintained at all times. A useful tooling tray is standard as well so the tooling stays with the machine instead of getting lost in a busy auto shop.
Baileigh Industrial exhaust pipe benders are well built to last for decades of profitable production. For more information contact a Baileigh Industrial representative.
| Weight | 1700 lbs |
|---|---|
| Dimensions | 16 × 32 × 53 in |
| Estimated Delivery | Not usually in Stock; however, "Request a Quote" or give us a call and we will find out what the Estimated Delivery will be and let you know. |
| F.O.B. Details | ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON) |
| Shipping Method | LTL Freight |
| Unloading Details | This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity. |
EB300-4001 1-1/2″ Round Tube Die, 3″ Radius 1
EB300-4002 1-3/4″ Round Tube Die, 3″ Radius 1
EB300-4003 2″ Round Tube Die, 4″ Radius 1
EB300-4004 2-1/4″ Round Tube Die, 4″ Radius 1
EB300-4005 2-1/2″ Round Tube Die, 5″ Radius 1
EB300-4006 2-1/4″ Round Tube Die, 5″ Radius 1
EB300-4007 3″ Round Tube Die, 5″ Radius 1
EB300-4008 2″ Round Tube Die, 5″ Radius 1
EB300-Die Pins Die Alignment Pins 38
EB300-Half Shoe Spacer Spacer for Half Bending Shoes 1
EB300-Full Shoe Spacer Pacer for Full Length Bending Shoes 2
EB300-4009 1-1/2″ Round Tube Full Length Bending Shoe 2
EB300-4010 1-3/4″ Round Tube Full Length Bending Shoe 2
EB300-4011 2″ Round Tube Full Length Bending Shoe 2
EB300-4012 2-1/4″ Round Tube Full Length Bending Shoe 2
EB300-4013 2-1/2″ Round Tube Full Length Bending Shoe 2
EB300-4014 3″ Round Tube Full Length Bending Shoe 2
EB300-4015 2-1/4″ Round Tube Half Length Bending Shoe 1
EB300-4016 2-1/2″ Round Tube Half Length Bending Shoe 1
EB300-4017 1-1/2″ Round Tube Half Length Bending Shoe 2
EB300-4018 1-3/4″ Round Tube Half Length Bending Shoe 2
EB300-4019 2″Round Tube Half Length Bending Shoe 2
EB300-4020 Expander Tip for 1-1/2″ to 1-3/4″ 1
EB300-4021 Expander Tip for 1-3/4″ to 3-1/2″ 1
EB300-4022 Die Holder 1
EB300-4025 Pipe Flanger 1-1/2″ to 3″ 1
EB300-4026 Expander Arbor for 1-3/8″ to 3-1/2″ 1
EB300-4027 2-1/2″ Round Tube Clamp Collet (2 Halves) 1
EB300-4028 2-1/4″ Round Tube Clamp Collet (2 Halves) 1
EB300-4029 1-1/2″ Round Tube Clamp Collet (2 Halves) 1
EB300-4030 2″ Round Tube Clamp Collet (2 Halves) 1
EB300-4031 1-3/4″ Round Tube Clamp Collet (2 Halves) 1
EB300-4032 Segment Expander 1-3/4″ to 2-1/8″ (Red) 1

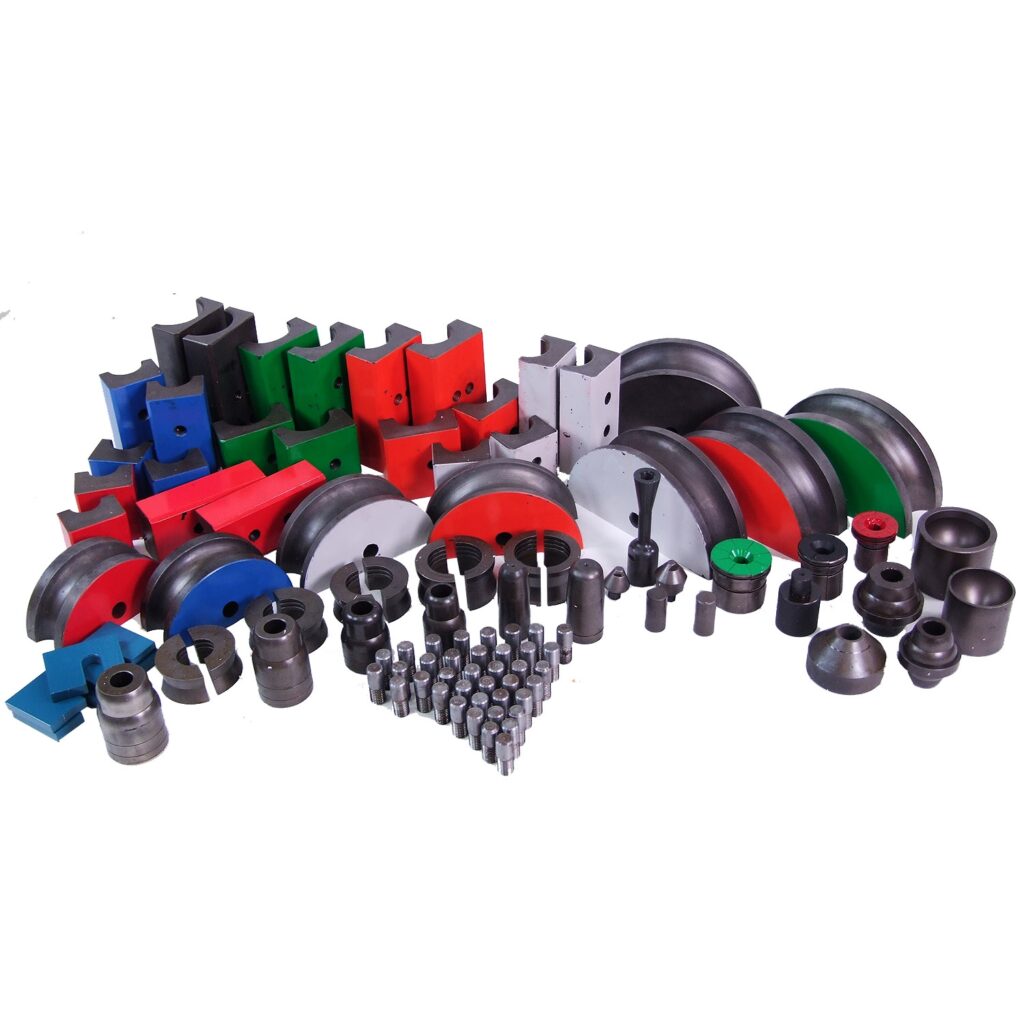

EB-300 Standard Tooling List
EB300-4033 Segment Expander 2-1/8″ to 2-1/2″ (Black) 1
EB300-4034 Segment Expander 2-1/2″ to 3″ (Green) 1
EB300-4035 1-1/2″ Swage Die 1
EB300-4036 1-3/4″ Swage Die 1
EB300-4037 1-1/2 Male Ball Die, 2″ Swage 1
EB300-4038 2″ Male Ball Die, 2-1/4″ Swage 1
EB300-4039 2-1/4″ Male Ball Die, 2-1/2″ Swage 1
EB300-4040 2-1/2″ Male Ball Die, 2-3/4″ Swage 1
EB300-4041 Female Ball Die, 1-3/4″ to 2″ 1
EB300-4042 Female Ball Die, 2-1/4″ to 2-1/2″ 1
EB300-4043 Domer Die 1-3/4″ to 2-1/2″ 1
EB300-4044 Domer Die 2-5/8″ to 2-3/4″ 1
