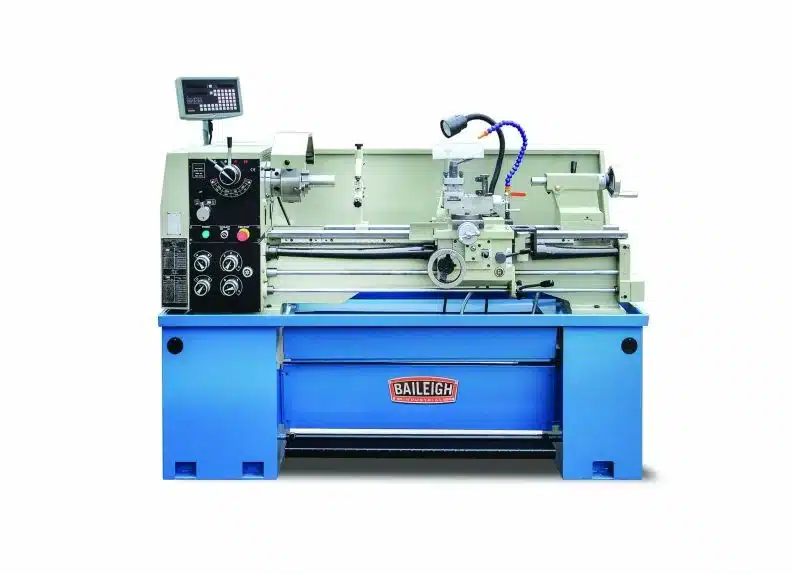

    The Baileigh PL-1440E Metal Lathe is a versatile machine with a 14” swing over bed and a 40” distance between centers. It operates on a 3 hp motor with a variable speed range of 90 to 1,800 rpm. The lathe features a digital readout (DRO), a gap lathe design for larger diameter workpieces, an integrated coolant system, and comes with both 3-jaw and 4-jaw chucks. It’s ideal for small to medium shops.

    Warranty: 1 YearUPC: 731325462777 SKU: BA9-1016623 Categories: ,

    Specifications

    Stock Number BA9-1016623
    Distance Between Centers (In.) 40″
    Input Power 220V / 1-phase
    Lead Screw Diameter 0.866
    Leadscrew Thread Pitch 4 T.P.I.
    Longitudinal Feeds Imperial Qty Speed .0012″ – .0294″/rev.
    Model Number PL-1440E-1.0
    Nose Radius (In.) D1-4″
    Number of Spindle Speeds 90 – 1800 rpm
    Overall Dimensions (L x W x H) (In.) 76″ x 30″ x 61″
    Quill Taper Morse #5
    Shipping Dimensions (L x W x H) (In.) 79x44x63
    Spindle Bore (In.) 1.5
    Spindle Taper with Sleeve Morse #3
    Swing Over Bed (In.) 14″
    Swing Over Cross Slide (In.) 8.6″
    Swing Through Gap (In.) 19.9″
    Table Length (In.) 40″
    Tailstock Spindle Travel (In.) 4.72″
    Taper in Tailstock Spindle 1.772″
    Weight (Lbs.) 1450
    Width of Bed (In.) 7.086″
    Threads Imperial Quality Speed (T.P.I.) 44 / 4-112 T.P.I.
    Threads Metric Quality Speed (mm pitch) 22 / .45-7.5 mm

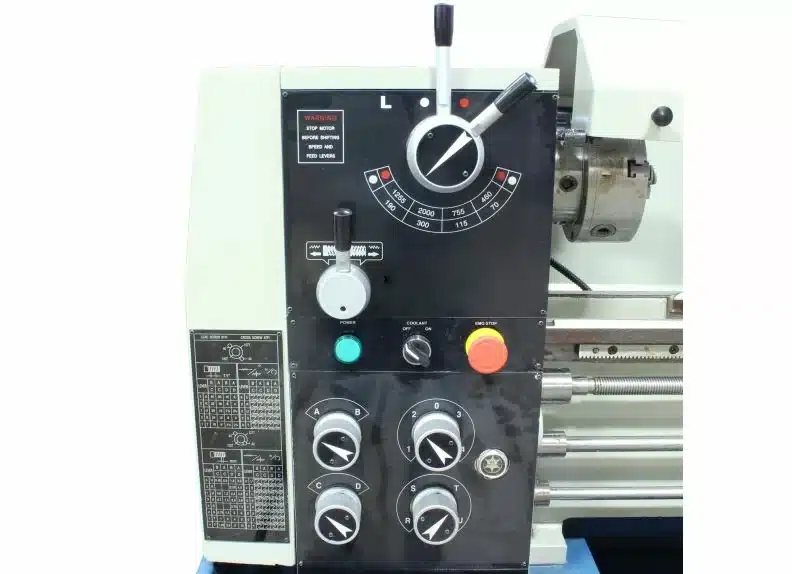

    • 3 hp motor runs on a 220-volt single-phase power with 8 spindle speeds, ranging from 90 to 1,800 rpm
    • Precision-ground and hardened ways ensure years of tight tolerances
    • Digital readout (pre-installed) helps you make precise cuts
    • Capable of making metric and standard threads
    • Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter
    • Integrated coolant system, which maintains accuracy and helps the machine last longer
    • Comes standard with 3-jaw and 4-jaw chucks, headstock chuck guard with automatic safety switch, and steady rest and follow rest
    • Other features include face plate, safety foot brake, and Halogen work light
    • Recommended for small to medium shops and schools with no assembly required. Just open the crate and wire it up
    • Optional taper attachment for making cones is sold separately

    Shipping Details

    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
