Baileigh Rotary Positioning Table for RDB-250

What is the perfect complement to any computer controlled Baileigh Tube and Pipe Bender?

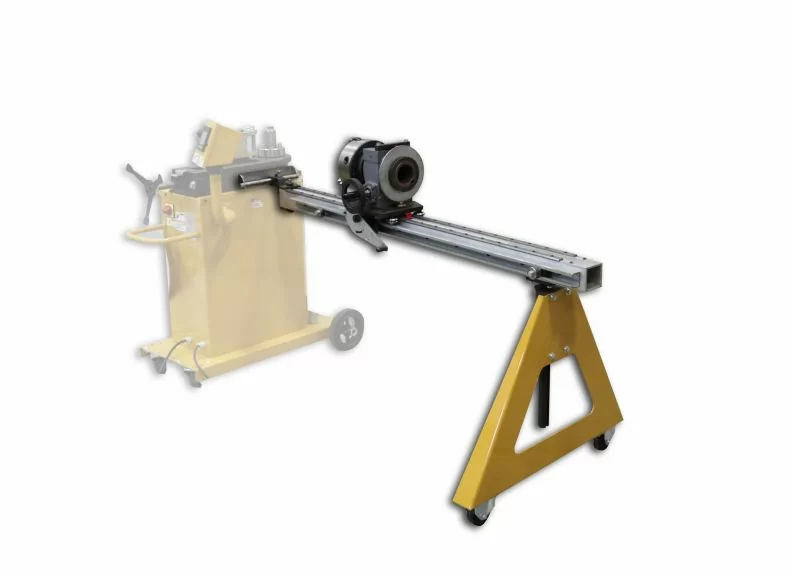

A rotary indexing table, of course. An RDB-250 tube bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends.

• The IDX-5, 10, 15 or 20-250 is a 5′, 10′, 15′ or 20′ table.

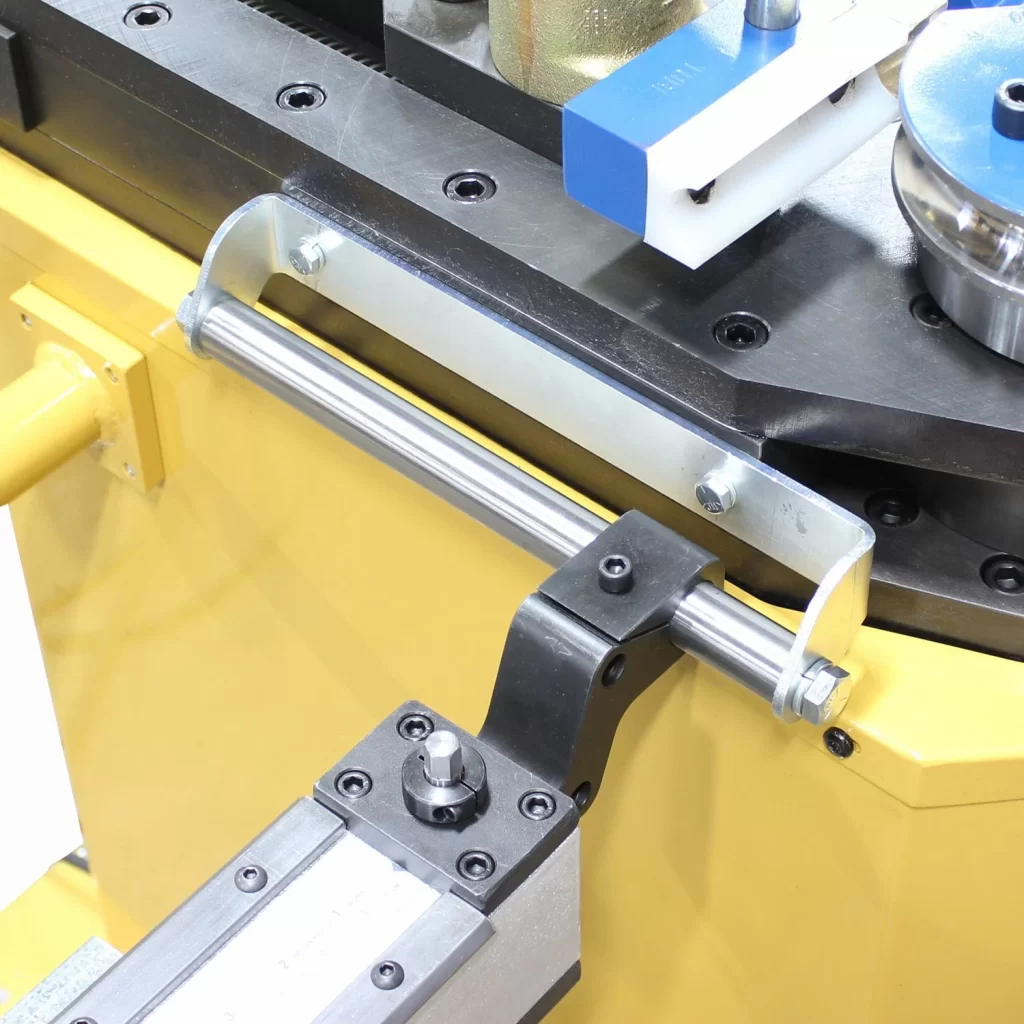

• And because only some jobs require the rotary indexing table, it can be attached or taken off of the bender with ease.

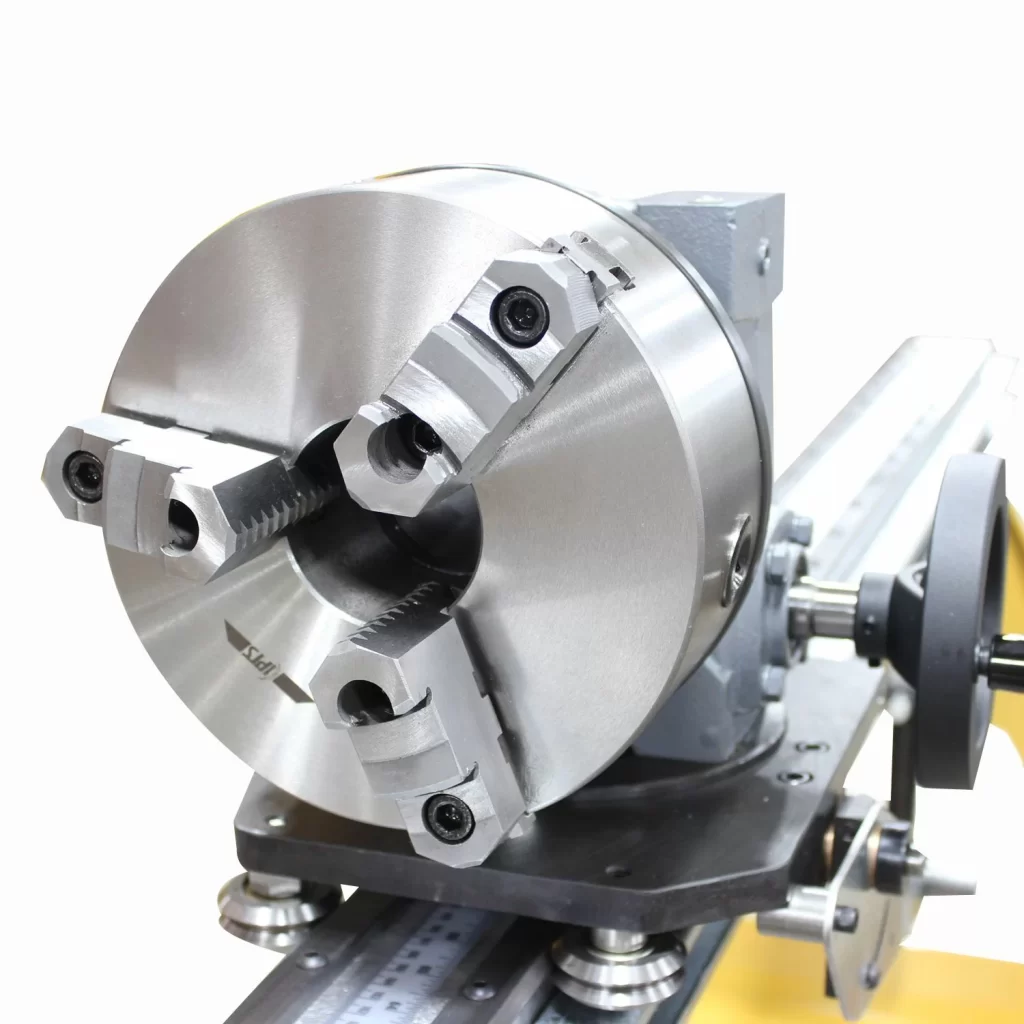

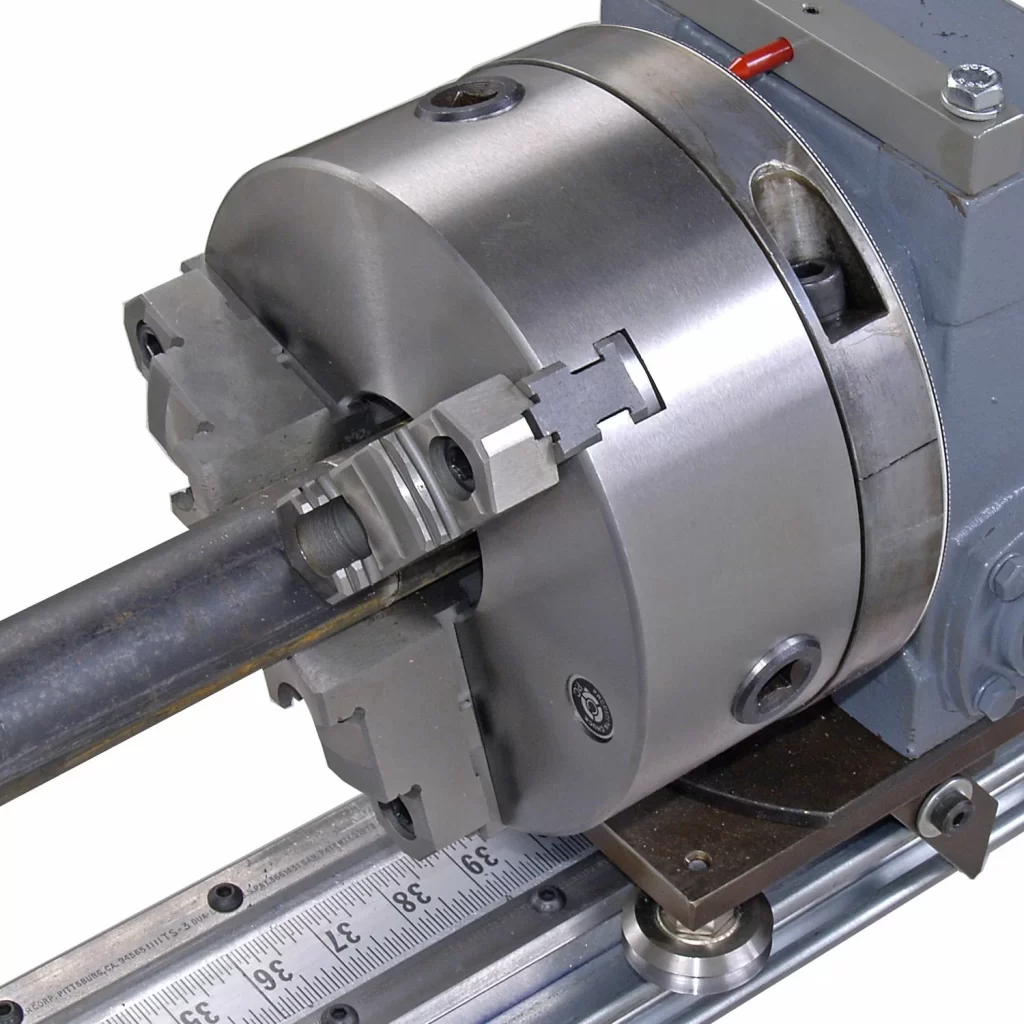

• This rotary indexer table comes with an 8″ three jaw chuck with 2-1/2″ thru hole that allows for longer pieces of tubing than the table length.
• Chuck can handle up to 4-1/2″ OD. The minimum OD is 1/4″.

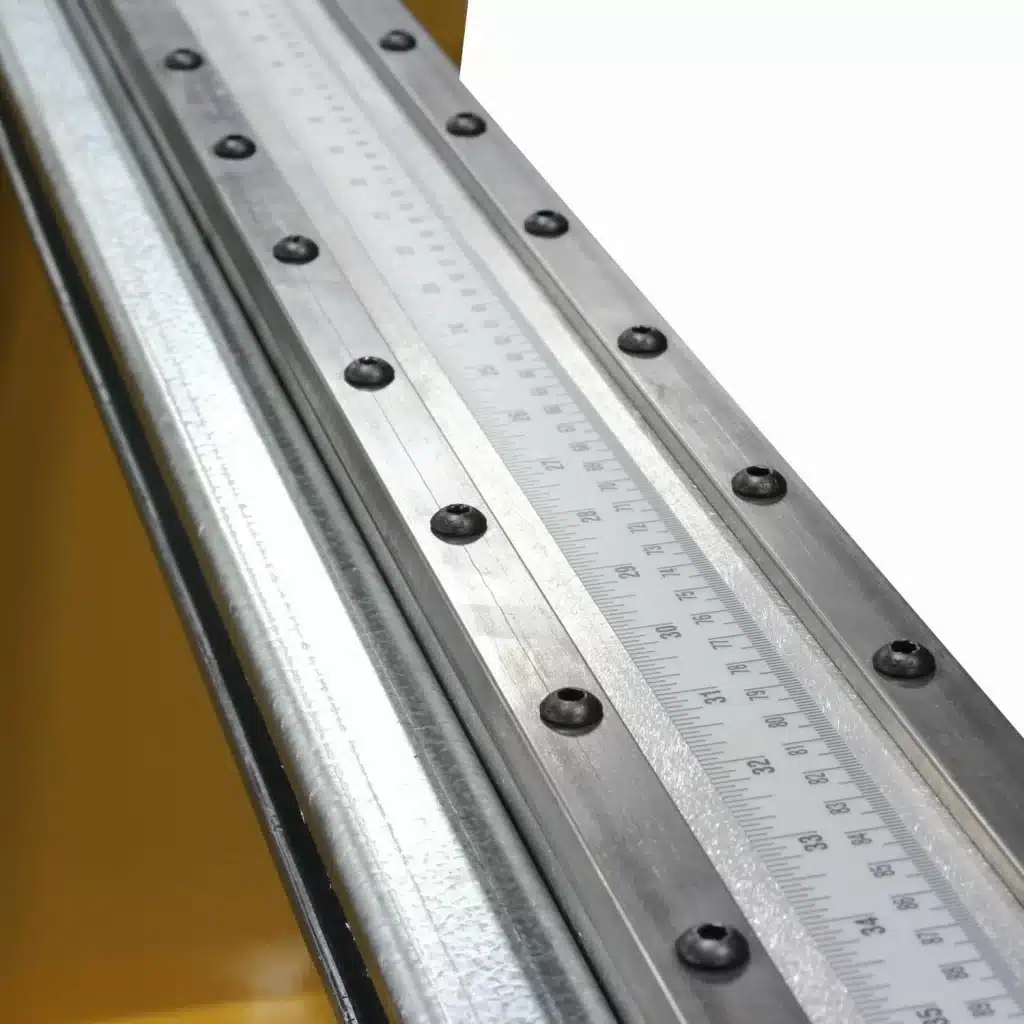

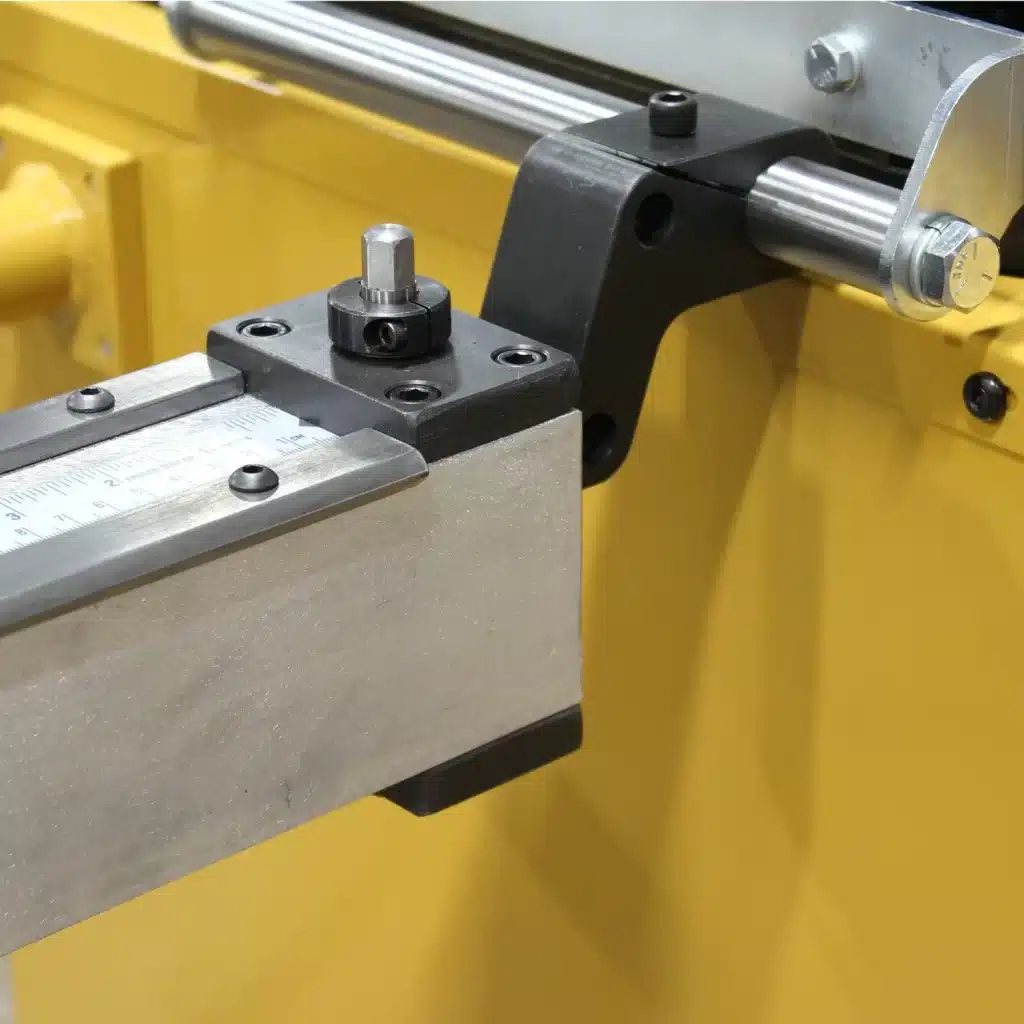

• The rotary positioning table has a linear indicator strip so the operator can set up accurate distances between bends.

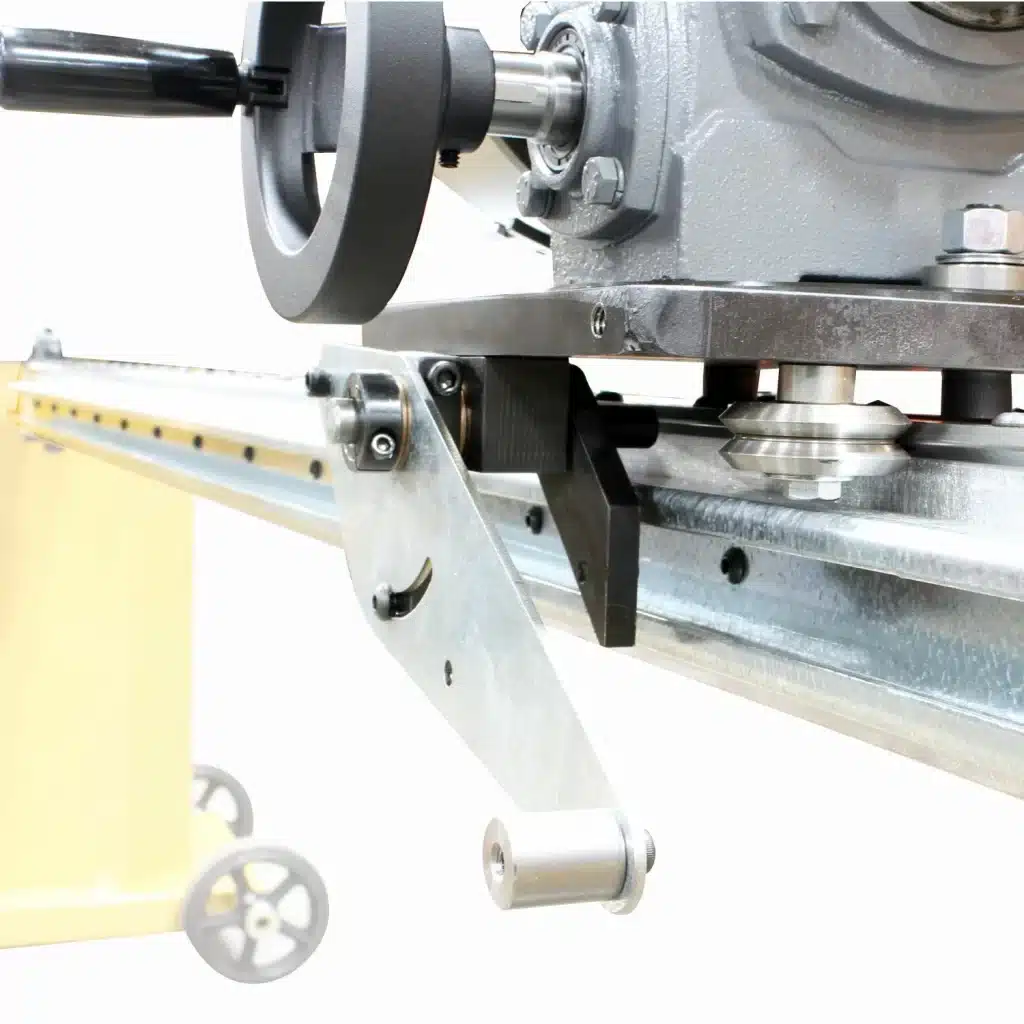

• Mechanical stops can be positioned for the start of each bend. Using the mechanical stops is very beneficial for repeatability on bigger production runs.

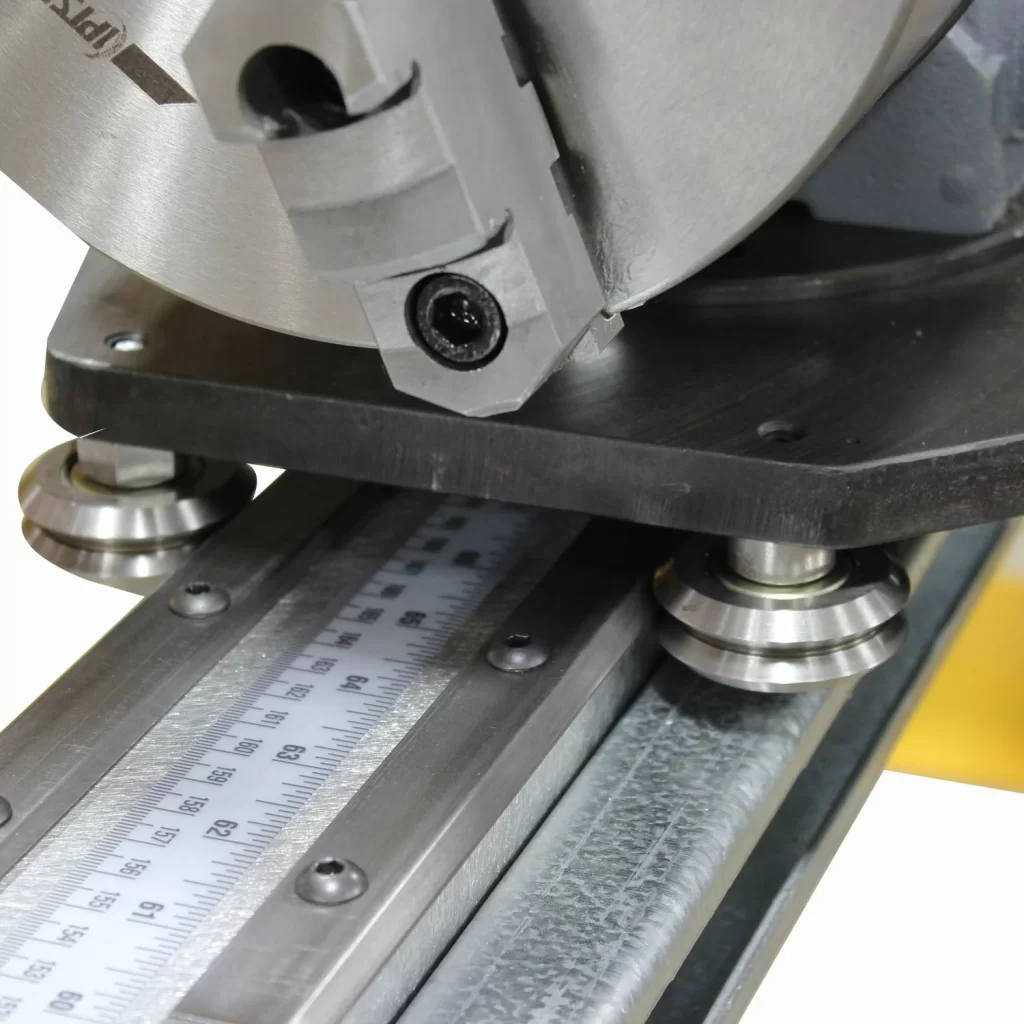

• Another nice feature of the table is that the positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings.
• These bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results.
• An optional digital readout system is also available.
