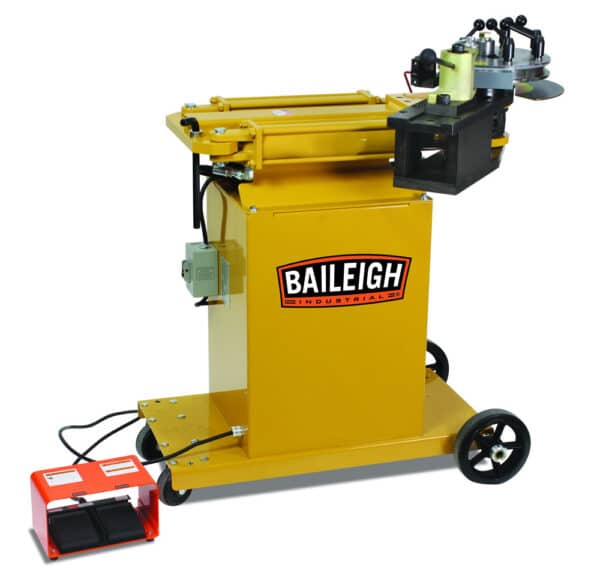

Baileigh RDB-150 Tube Bender

Baileigh RDB-150 Tube Bender

Original price was: $10,928.34.Current price is: $10,000.00. CAD Funds

Looking for more details? Click on Request a Quote!

Have questions about Stock Status or Machine Options? Call us: (226) 688-4313

    Warranty: 1 Year SKU: BA9-RDB150110 Categories: , ,

    Specifications

    Item Number RDB-150
    Country of Manufacture United States
    Minimum CLR .5″
    Minimum OD .25″
    Mild Steel Solid Rod 1″
    Mild Steel Pipe Schedule 40 2″
    Mild Steel Round Tube Wall 2.5″ (.125)
    Mild Steel Square Tube (Wall) 2″ (.125)
    Stainless Steel Pipe Schedule 40 1.5″
    Stainless Steel Round Tube Wall 2.375″ (.125)
    Chromolly Round Tube Wall 2″ (.125)
    Aluminum Round Tube Wall 2.5″ (.156)
    Maximum Center Line Radius Clr 9.5″
    Power 110V
    Shipping Weight 610lbs
    Special Notes Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
    Things to Know Before Purchase All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
    Shipping Dimensions (Inches) 60x44x77

    This American-made machine set a new standard in 2002 as the first hydraulic tube bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field—working as well today as they did the day they were made.

    • Runs on just 110 volts of power and will work at most fabrication sites in North America.

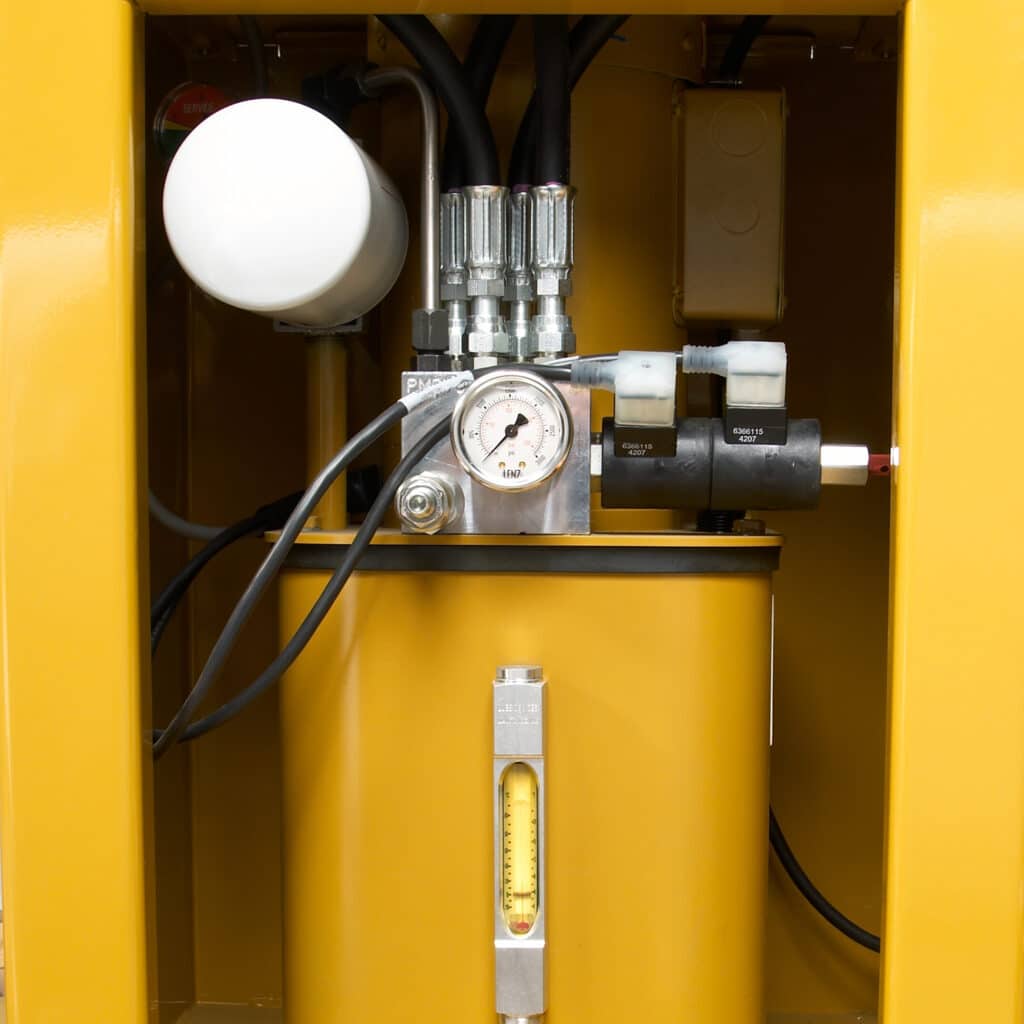

    • Rotary draw powered by low-pressure, industrial-grade hydraulic system.
    • 8” centerline radius maximum, depending on the outside diameter of the material.
    • Bends with a capacity of 2″ schedule 40 pipe and up to 2.5″ tubing with a wall thickness of .120″ mild steel.

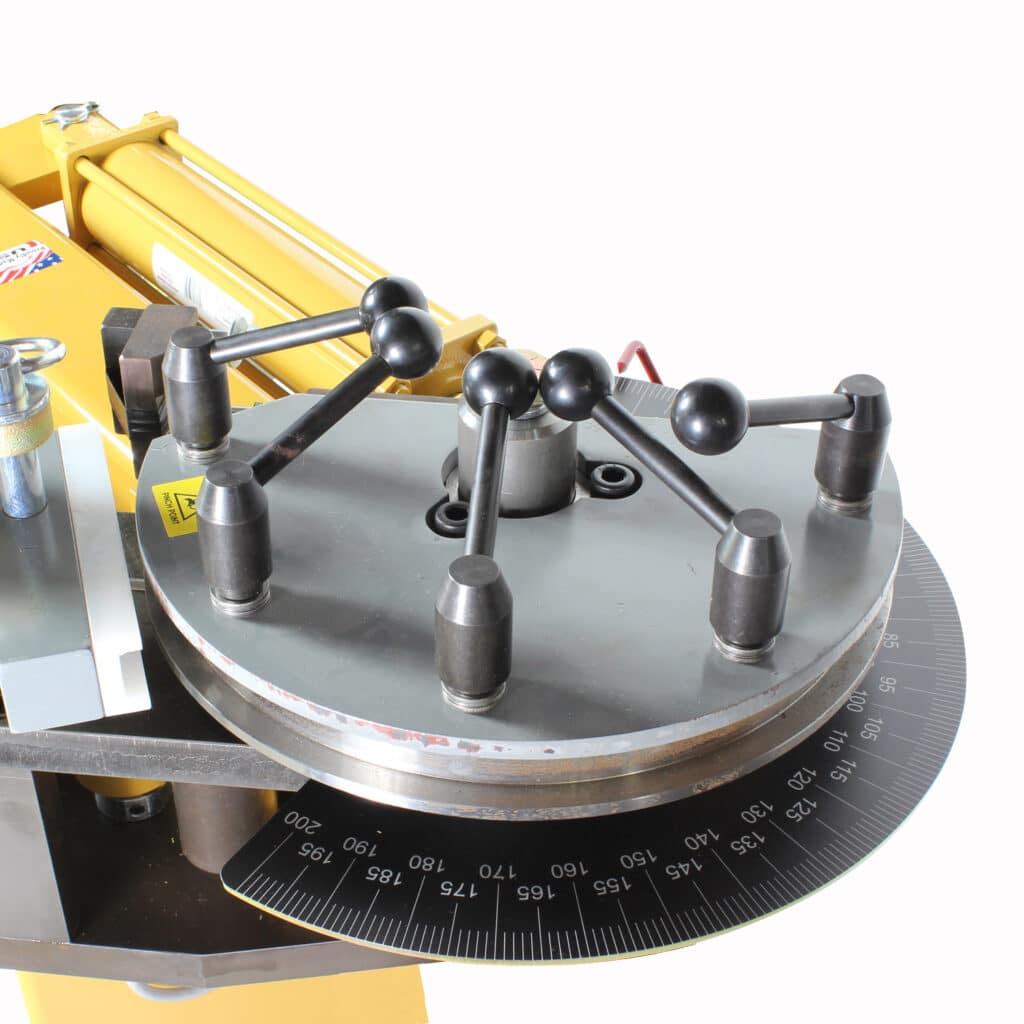

    • Easy-to-read degree indicator to help you achieve correct bend degrees.

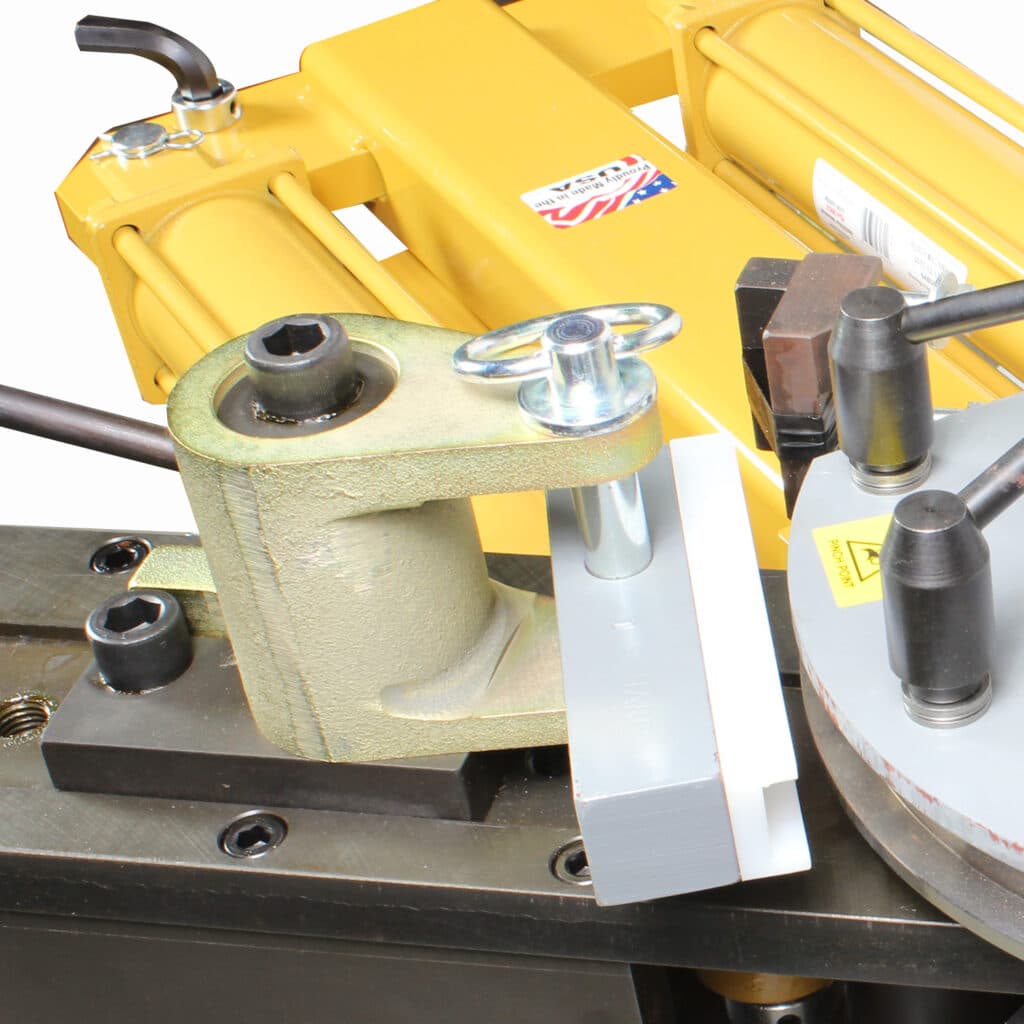

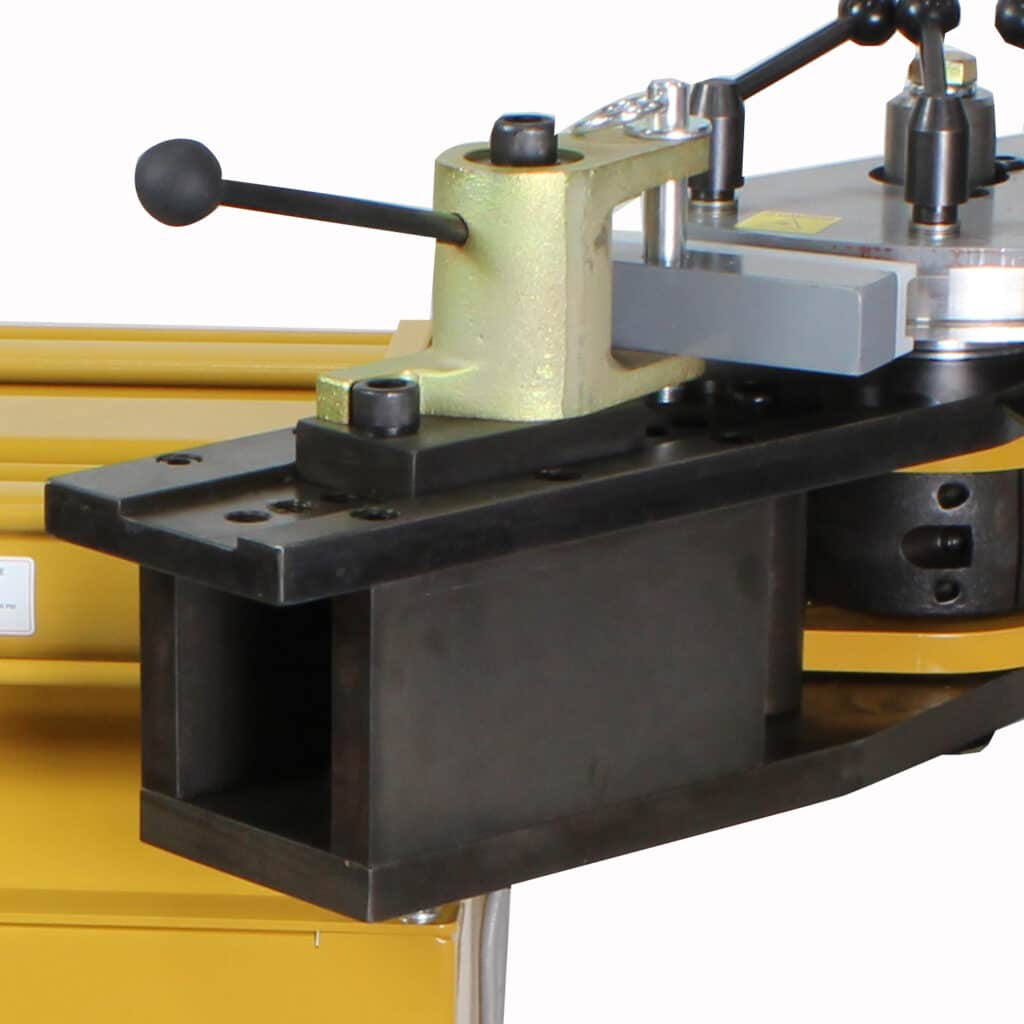

    • Quick-release counter die system for hassle-free loading and unloading.

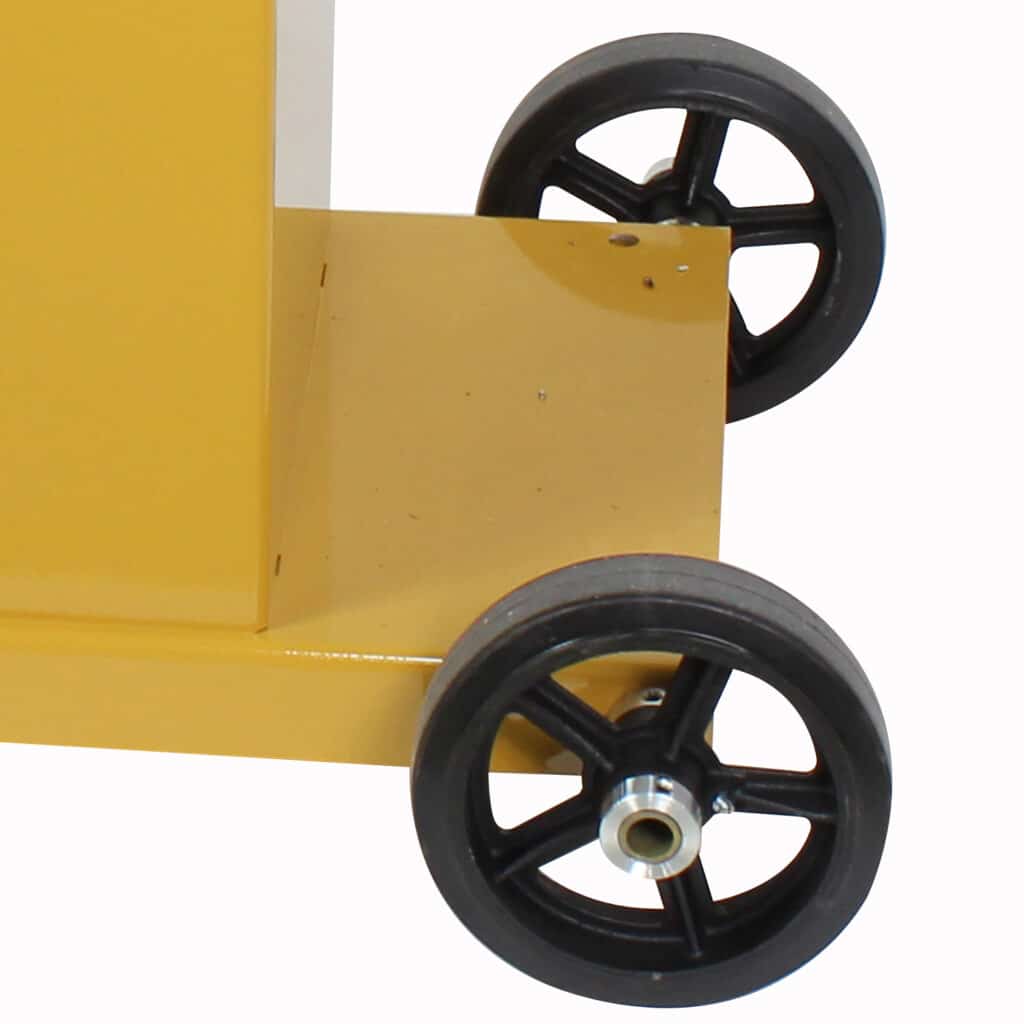

    • Includes wheels on the base for smooth movement, helpful for storage in small shops.
    • Covered by a 1-year parts warranty and lifetime technical support.

    Why choose the RDB-150 over similar machines?

    • Our original, much-imitated twin-cylinder design remains unequaled.
    • Small- to medium-sized fabrication shops will save time and money by investing in this hydraulic bender.
    • Accepts simple-to-add drop-on tooling from Baileigh—including custom sets on request—giving you thousands of possibilities.
    • Our limitless after-sale support means that free advice on projects and applications is always just a call away.

    Shipping Details

    Weight 610 lbs
    Dimensions 60 × 44 × 77 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
