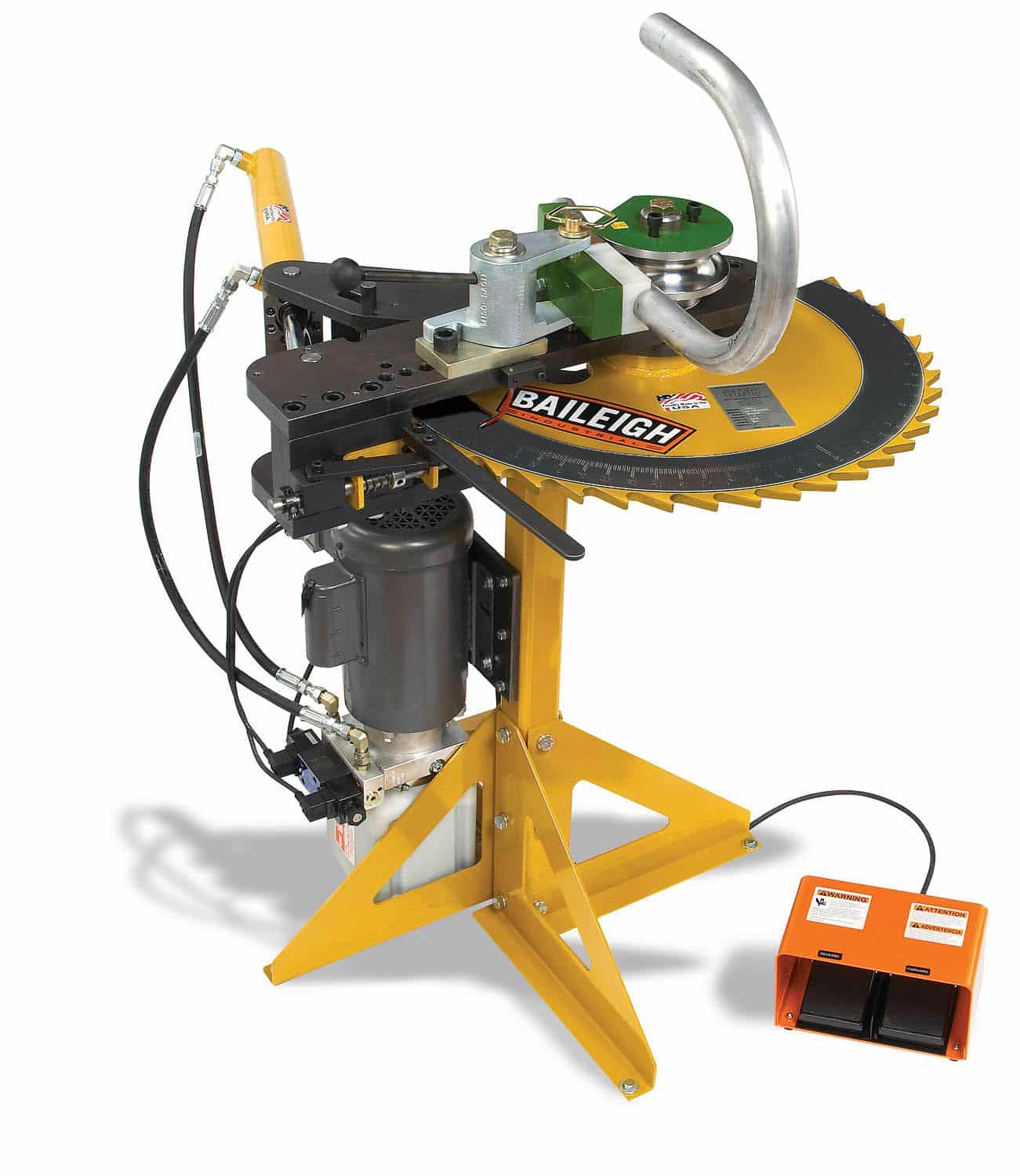

Name: Baileigh RDB-125 Rotary Draw Bender
SKU: BA9-RDB125
Availability: InStock

Specifications

Stock Number	BA9-RDB125
Model Number	RDB-125
Aluminum Pipe Schedule 40	2.5″ (.156)
Chromoly Round Tube Wall	2″ (.125)
Input Power	110 volt
Max. Bend (Deg.)	200 deg.
Minimum Center line Radius	.5″
Minimum OD	0.25
Round Tube Capacity (In.)	2.5″ (.125)
Shipping Dimensions (L x W x H) (In.)	60x44x77
Square Tube Capacity (In.)	2″ (.125)

Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
Handles a maximum capacity of 2.5” OD tubing, 2” OD Chrom alloy, 2” square tubing, and 2” schedule 40 pipe.
Maximum centerline of 8”, depending on material’s OD.
Bends up to 200°, allowing for true 180° bends without having to re-pin the die set.
Takes only 4 complete pushes to reach 180°.

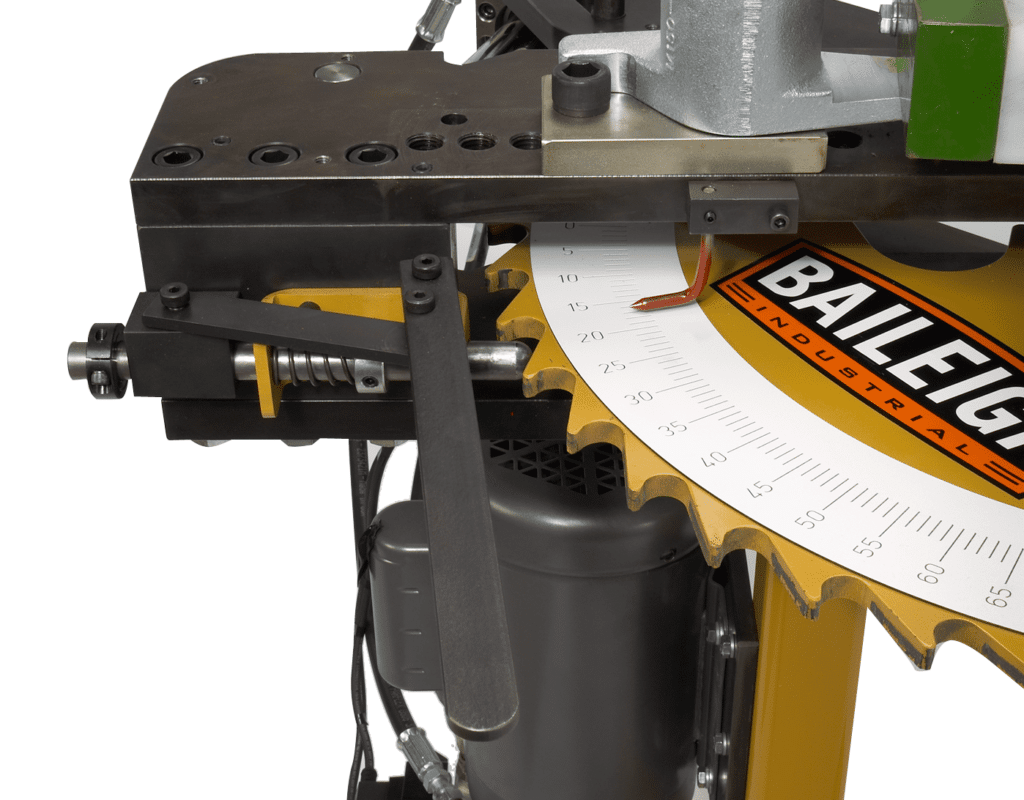

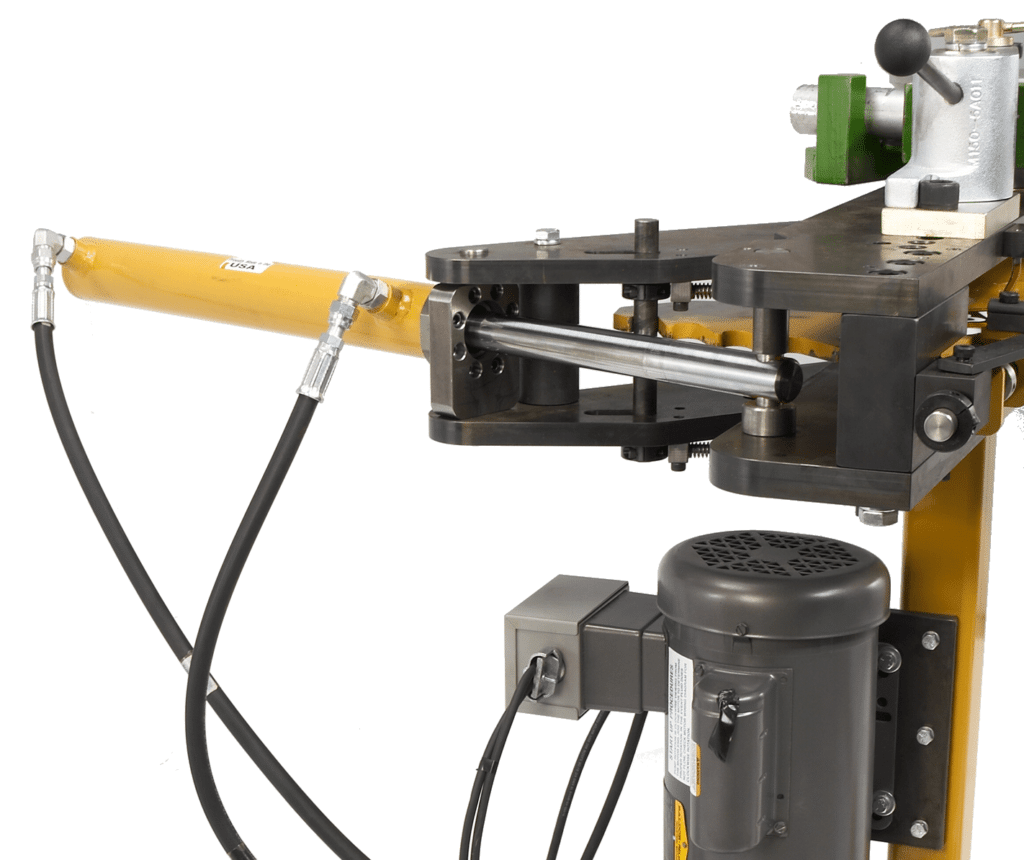

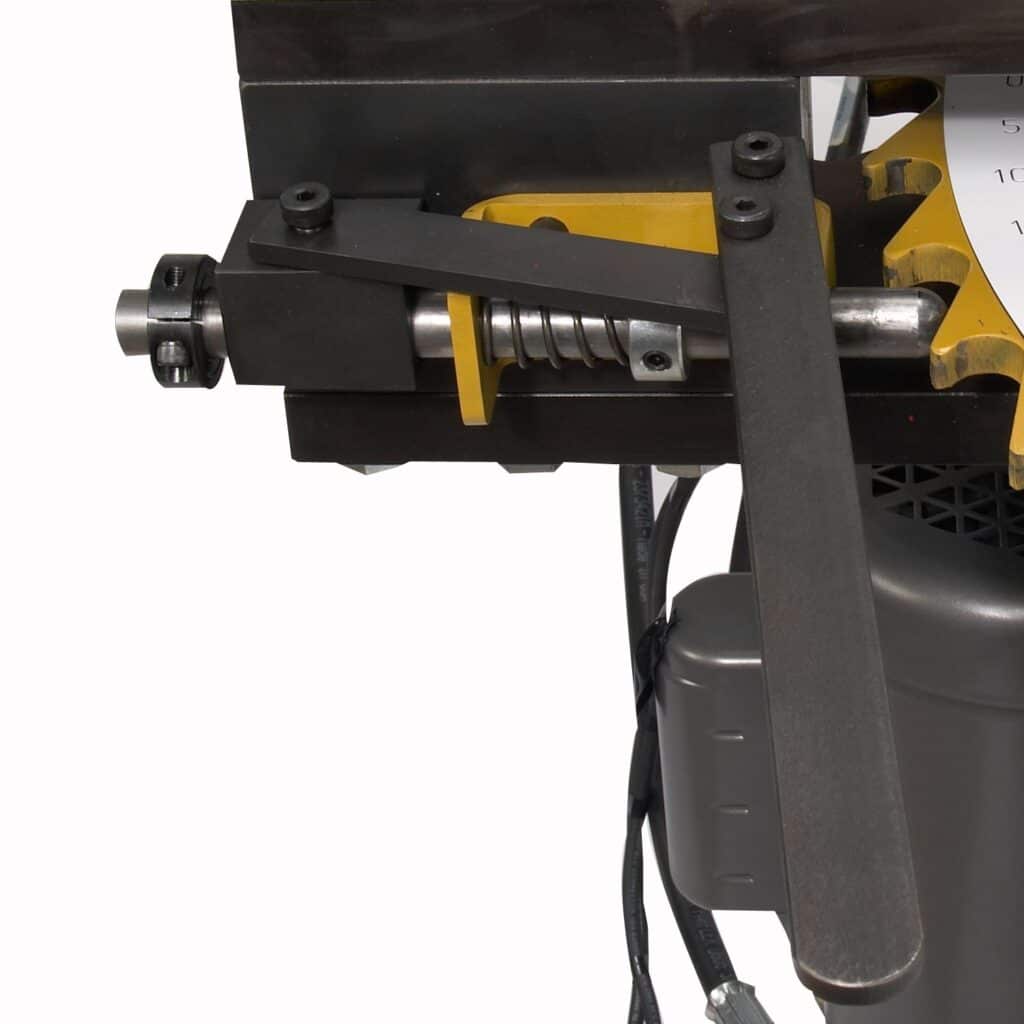

Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
Covered by a 1-year parts warranty.
Comes with lifetime technical support from our knowledgeable team.
All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications

Shipping Details

Weight	275 lbs
Dimensions	60 × 44 × 77 in
Estimated Delivery	Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
Shipping Method	LTL Freight
F.O.B. Details	ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
Unloading Details	This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
Product Type	Tube & Pipe Benders
