1/2″ Schedule 40 Pipe Bender Dies

$455.00 – $905.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

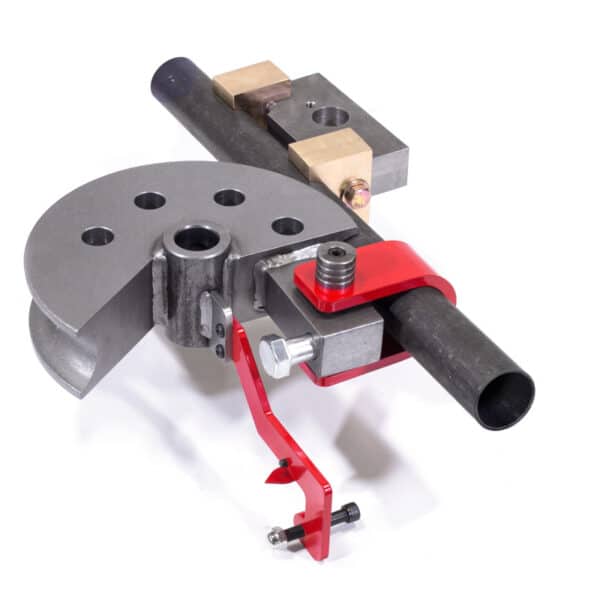

    The 1/2" Schedule 40 Pipe Bender Dies are designed for use with Edwards 10 Ton Bender to bend solid round, Schedule 40 pipe, tube, and d.o.m. tubing. The die sets are specifically designed to center the bending work within the head-frame assembly, ensuring symmetrical distribution of bending forces, which helps prevent machine wear and maintain operator safety. It's crucial to use matched die sets to avoid damage to the machine and maintain the highest quality finished parts.

    Warranty: 1 Year SKU: N/A Categories: , Tag:

    Specifications

    1/2″ Schedule 40 Pipe Bender Die:

    • Nominal Size (IPS): 1/2″
    • Diameter External (Inches): .840
    • Diameter Internal (Inches): .622
    • Wall Thickness (Inches): .109

    More Details:

    • Your Edwards 10 Ton Bender will bend solid round, schedule 40 pipe, tube and d.o.m. tubing when equipped with the proper, matched die sets and careful operation.
    • Die sets are designed to center the bending work within the head-frame assembly. This design feature symmetrically distributes bending forces through the head-frame, eliminating asymmetrical stress, torque and premature wear of your machine.
    • All die components are matched as a set and are specific to the product being bent. Never mix and match die set components.
    • Mixing die set components may damage the product being bent, machine operation, and operator safety. Damage to the bender due to mixed die components may compromise machine warranty.
    • Die sets contain wearing parts. Periodic cleaning and/or replacement of wearing surfaces is required to maintain the highest quality finished parts.

    Edwards Tube and Pipe Bender Die Set DiagramEdwards Tube and Pipe Bender Head Frame Diagram

    • Material Size: Refers to actual Outside Diameter of the tube as measured with a caliper.
    • Degree of Bend: Dies can be purchased to bend up to 90 degrees or up to a full U-bend of 180 degrees after spring-back.
    • CLR: Stands for Center Line Radius, meaning the bend radius as measured from the center rotation point of the die to the middle of the tubing.

    Shipping Details

    Weight 85 lbs
    Dimensions 24 × 24 × 24 in
    Estimated Delivery

    Not usually in Stock; however, "Request a Quote" or give us a call and we will find out what the Estimated Delivery will be and let you know.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    Parcel Shipping (UPS, Canada Post or Purolator)
    Unloading Details

    This package weighs less than 100 Lbs.
    Product Type

    Tube and Pipe Bender Dies
