Sale!

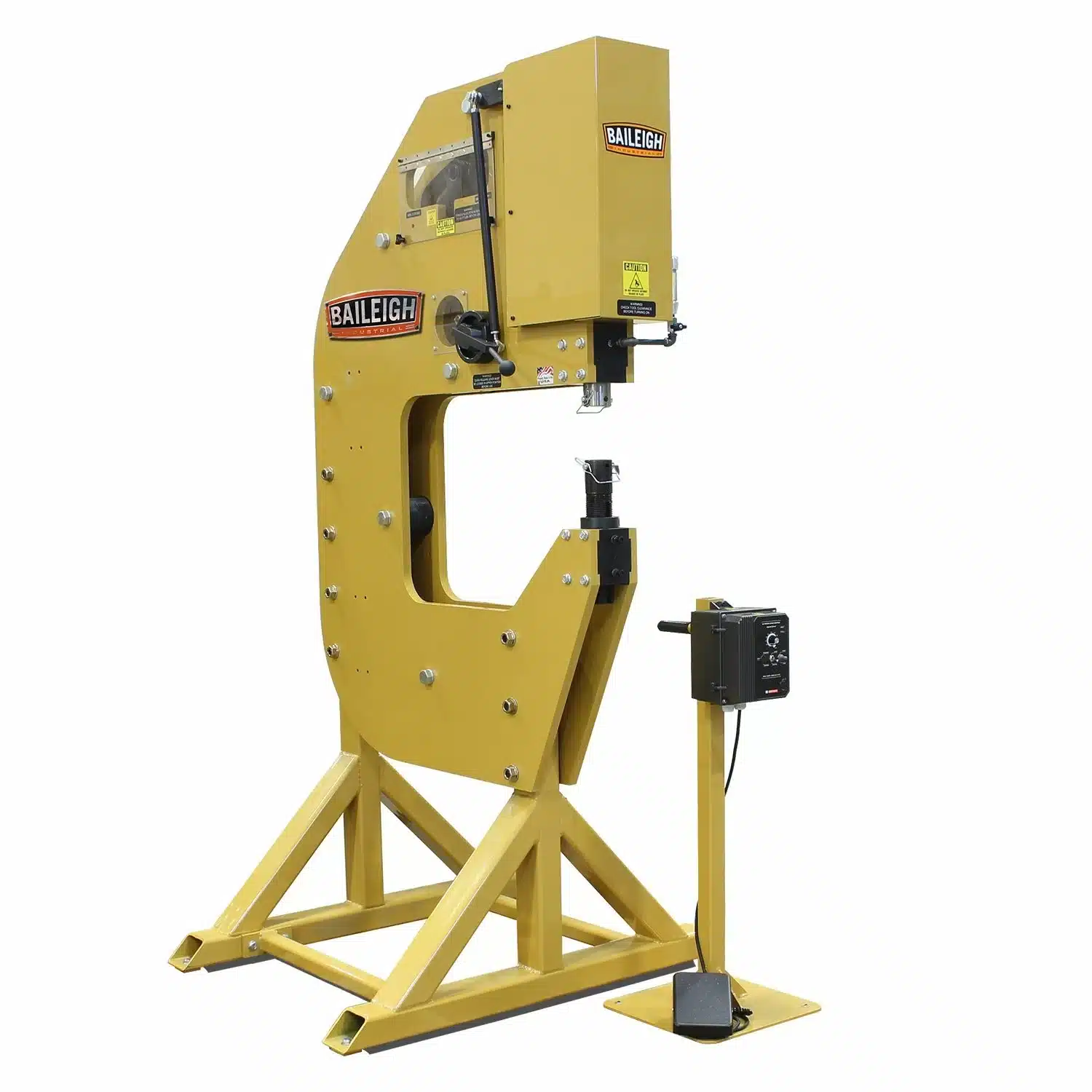

Baileigh PH-28HD-VS Power Hammer

Name: Baileigh PH-28HD-VS Power Hammer
SKU: BA9-PH28HD
Availability: InStock

Original price was: $30,895.00.Current price is: $28,095.00. CAD Funds

Choose an option below:

Warranty: 1 Year SKU: BA9-PH28HD Categories: Baileigh Industrial, Forming & Shaping, Power Hammers

Specifications

Stock Number	BA9-PH28HD
Aluminum Capacity (Gauge)	10.0000
Input Power	220V / 1-phase
Mild Steel Capacity (Gauge)	14.0000
Model Number	PH-28HD-VS
Motor (HP)	3 hp
Range of Speeds	0 – 1000 beats / min (Variable)
Shipping Dimensions (L x W x H) (In.)	60x50x98
Throat Depth (In.)	28″
Weight (Lbs.)	2000
Work Height (In.)	62.5
Tooling Height Adjustment (In.)	2

28” throat with deep cutout designed for fenders.
Large 14 gauge mild steel capacity.
Variable speed from 0 to 1,000 beats per minute.

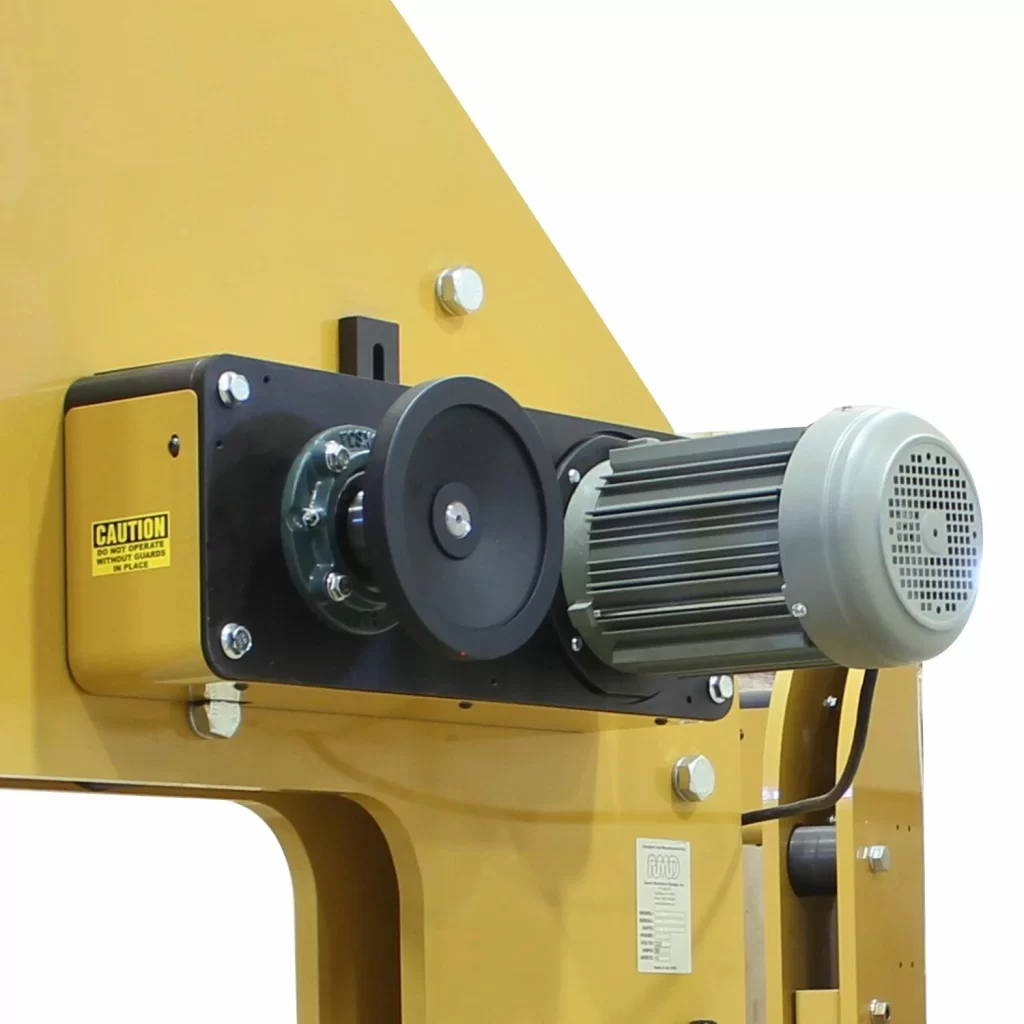

3 hp motor runs on 220-volt single-phase power
Developed over 20 years of research to find what’s most important to metal shapers.
Hits up to 75% harder than its predecessor, the MH-19.

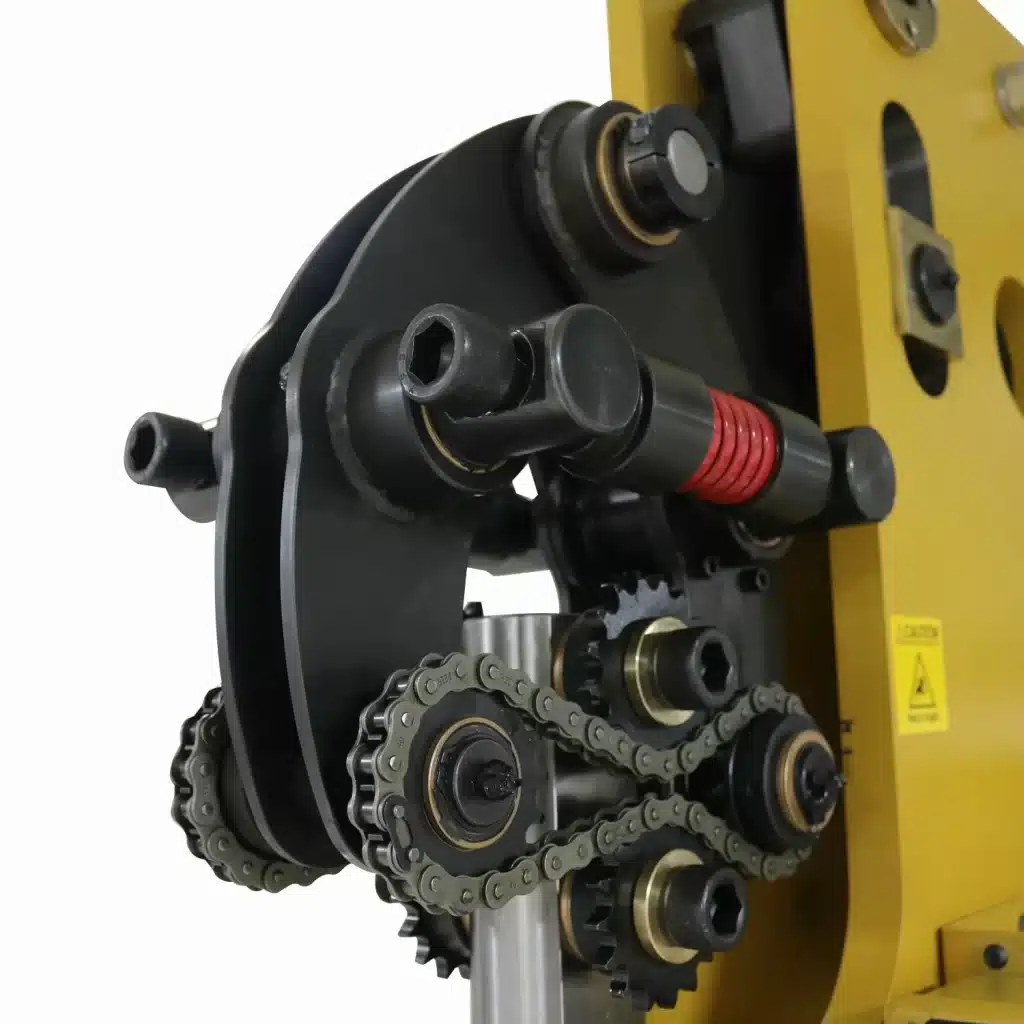

Incorporates Dupont linkage (also used on our massive MH-37HD) to shape heavier gauges of steel.
Quick-release design lets you get the tooling out of the way to add or remove your panel.

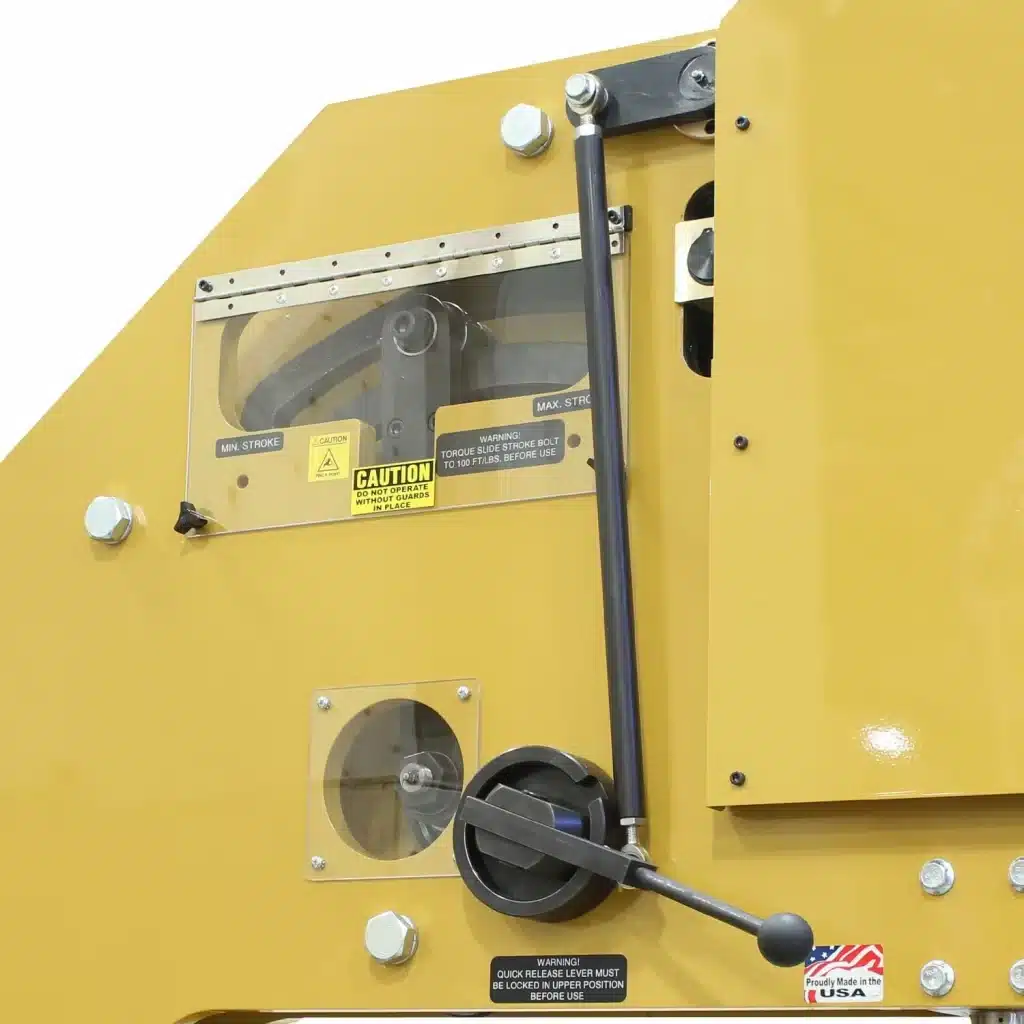

Switch between 3 fixed stroke settings on the fly: ¼”, ½”, ¾”.
Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required.

Weight	2000 lbs
Dimensions	60 × 58 × 98 in
Estimated Delivery	Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
F.O.B. Details	ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
Shipping Method	LTL Freight
Unloading Details	This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
Product Type	Forming and Shaping
