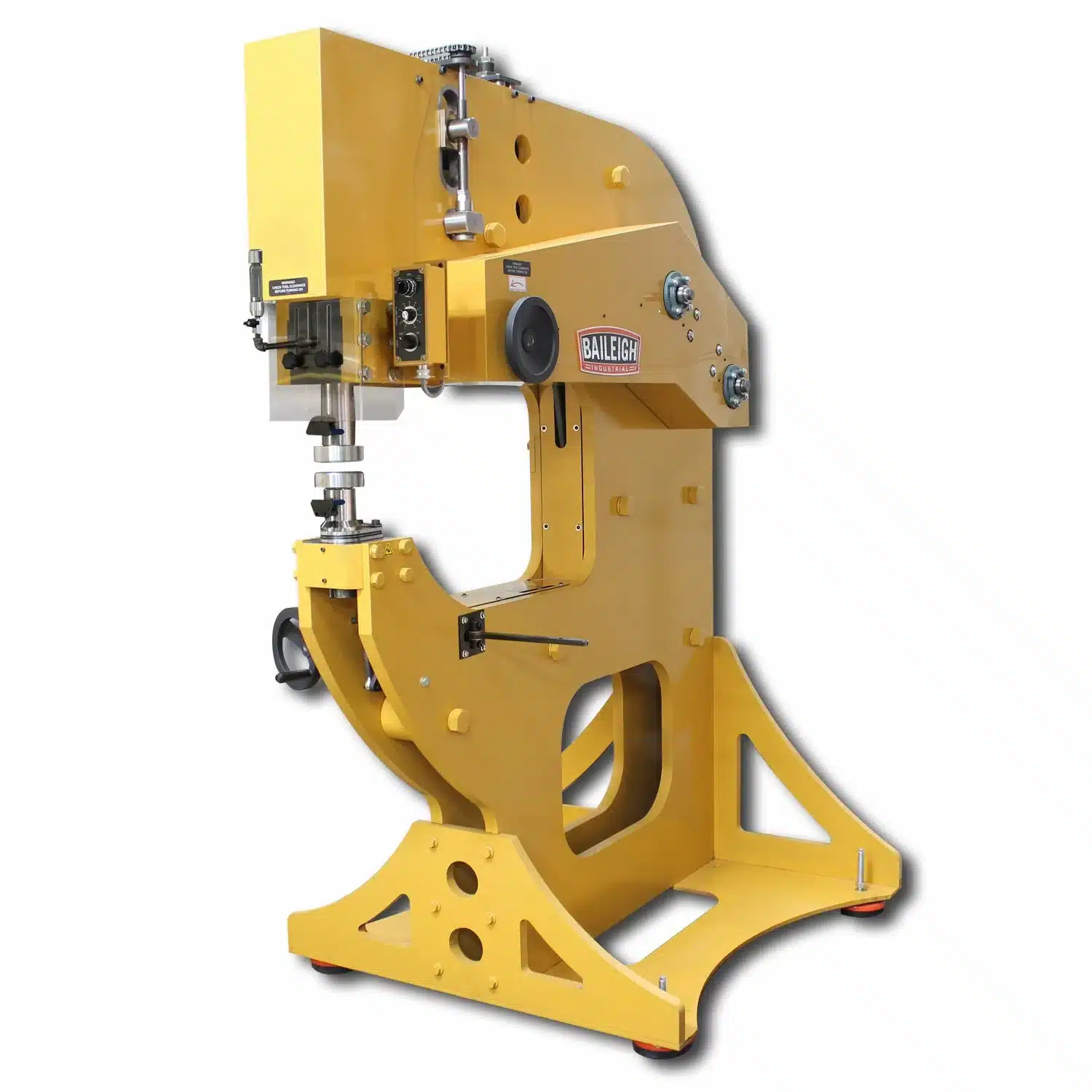

Baileigh MH-37HD Power Hammer

Name: Baileigh MH-37HD Power Hammer
SKU: BA9-MH37HD
Price: 109000.00 CAD
Availability: InStock

Original price was: $113,920.16.Current price is: $109,000.00. CAD Funds

Looking for more details? Click on Request a Quote!

Warranty: 1 Year SKU: BA9-MH37HD Categories: Baileigh Industrial, Forming & Shaping, Power Hammers

Specifications

Stock Number	BA9-MH37HD
Input Power	220V – 3-Phase
Mild Steel Capacity (Gauge)	10.0000
Model Number	MH-37HD
Motor (HP)	5 hp
Shipping Dimensions (L x W x H) (In.)	79x60x100
Stroke Length (In.)	0.1″ – 0.75″
Throat Depth (In.)	37″
Weight (Lbs.)	6000
Aluminum Capacity	.250″ Soft
Speed (rpm)	0 – 1500 beats / minute

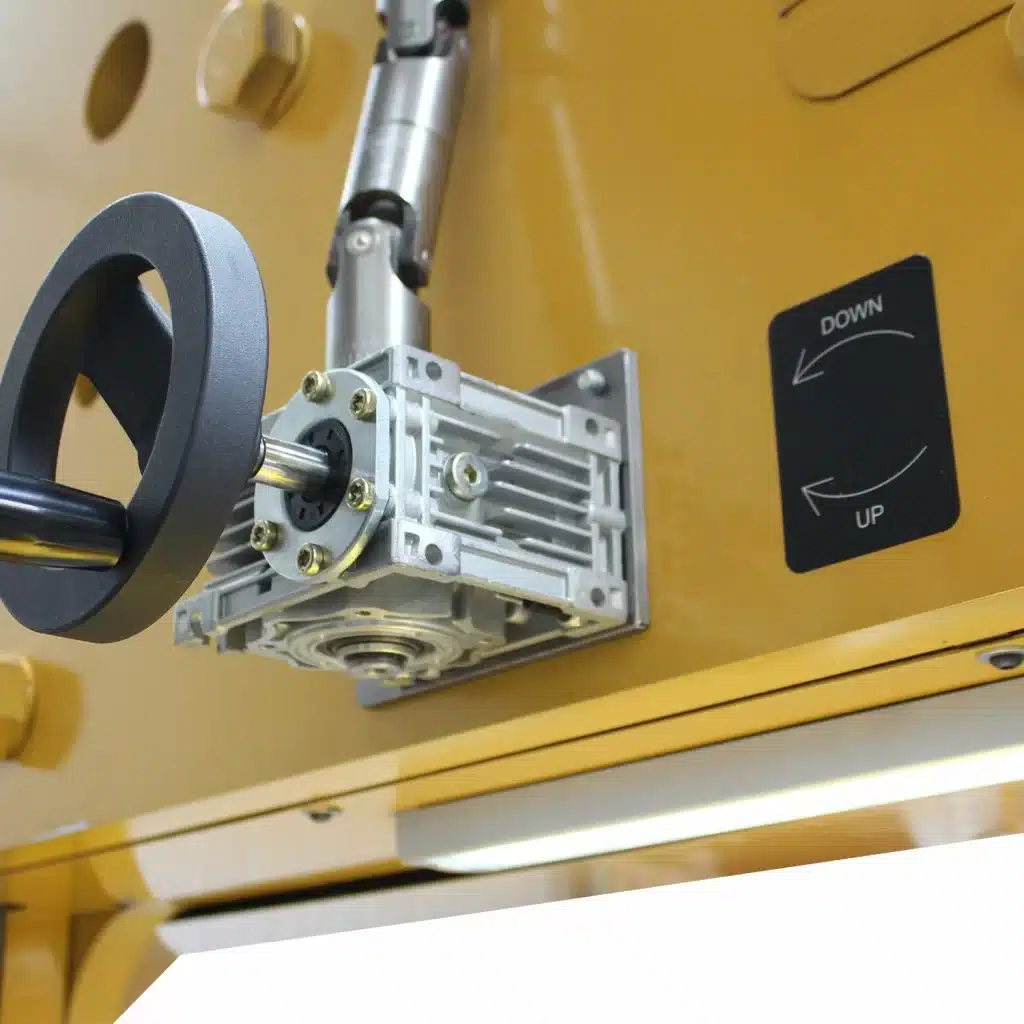

Tooling Height Adjustment (In.)	2

37” throat depth can handle large or pre-bent panels.
0 to 1,500 beats per minute (inverter-driven variable speed).
Adjust the speed via the foot pedal or operator panel.

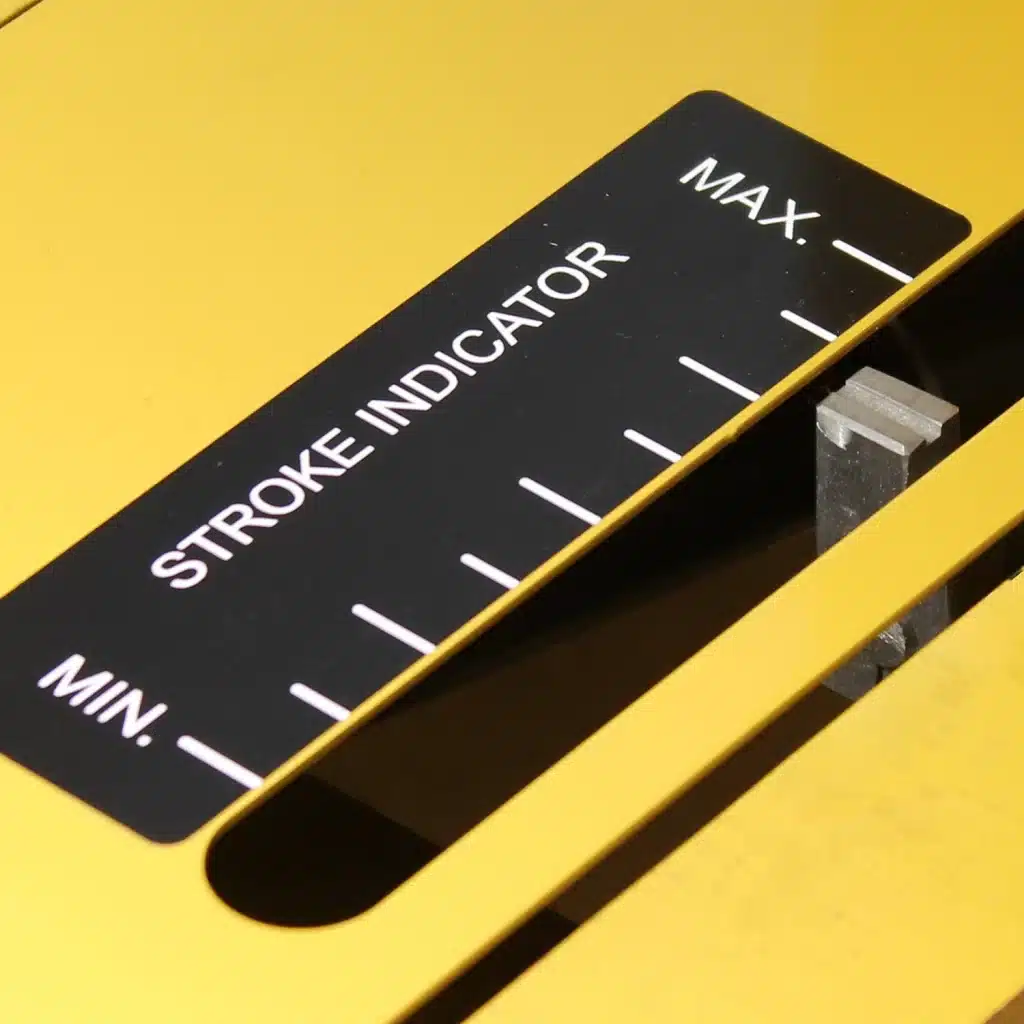

On-the-fly stroke adjustments range from 0.1” to .750”.
⅛” steel and ¼” soft aluminum shrinking capacity.
Runs on 220-volt 3-phase power.
Switch between rigid Pullmax®-style mode and spring-slapping Yoder® style mode, depending on your project.
Use rigid mode for short stroke shaping and flanging. No “give” between die heads.
Non-rigid mode creates a dead blow hammering effect, suitable for aggressive shrinking and planishing.
Tooling changes take only a few seconds. Release the die, pull out the pin, switch, and replace the pin.

Weight	6000 lbs
Dimensions	76 × 60 × 100 in
Estimated Delivery	Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
F.O.B. Details	ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
Shipping Method	LTL Freight
Unloading Details	This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
Product Type	Forming and Shaping
