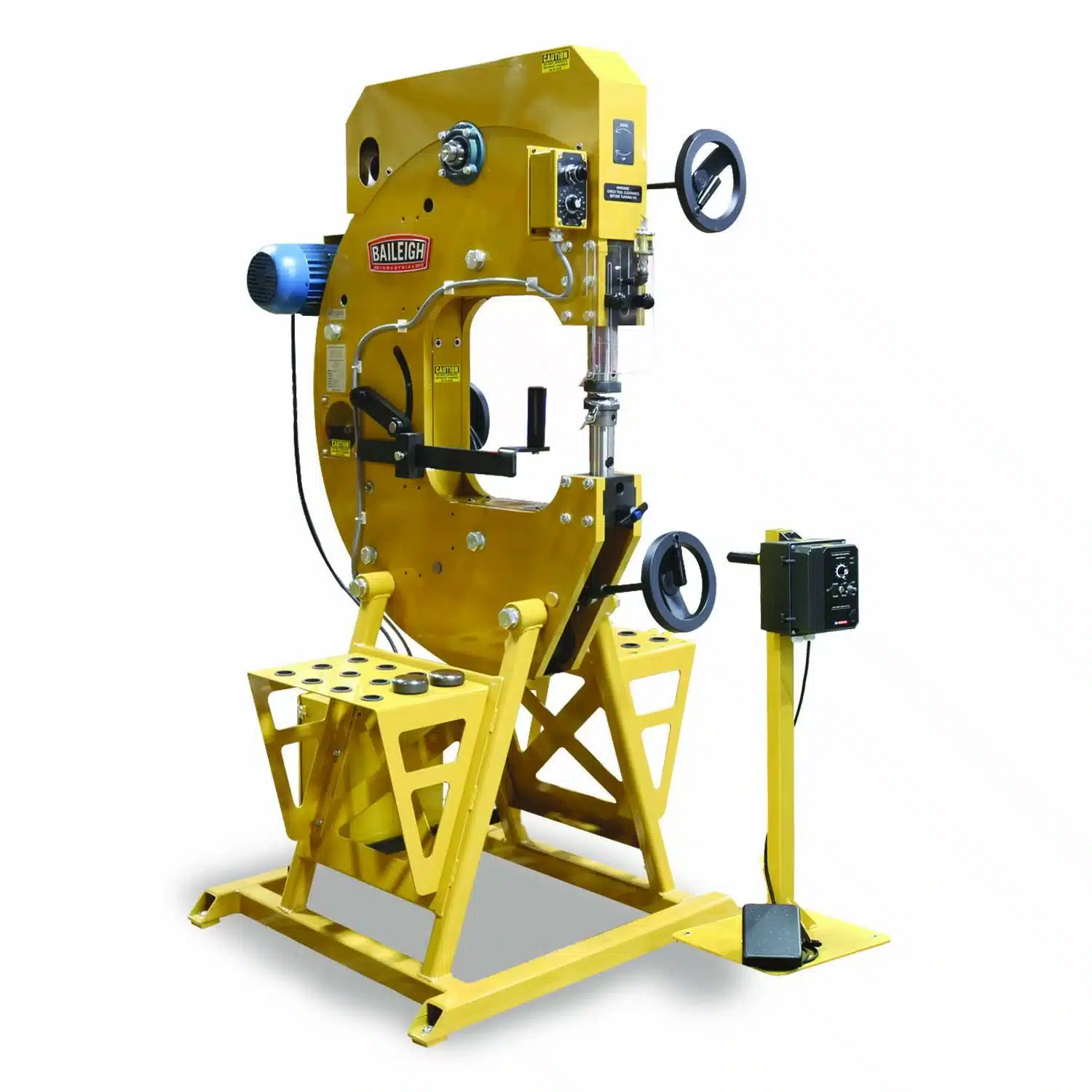

Baileigh MH-19 Power Hammer

Name: Baileigh MH-19 Power Hammer
SKU: BA9-MDL-MH19
Availability: InStock

Original price was: $42,195.00.Current price is: $38,395.00. CAD Funds

Choose an option below:

Warranty: 1 Year SKU: BA9-MDL-MH19 Categories: Baileigh Industrial, Forming & Shaping, Power Hammers

Specifications

Stock Number	BA9-MDL-MH19
Aluminum Capacity (Gauge)	12.0000
Input Power	110 / 220V, 1-phase
Mild Steel Capacity (Gauge)	16.0000
Model Number	MH-19
Range of Speeds	0 – 1500 beats / minute
Shipping Dimensions (L x W x H) (In.)	65x50x96
Stroke Length (In.)	.177″ – .550″
Throat Depth (In.)	19″
Weight (Lbs.)	1300
Tooling Height Adjustment (In.)	2

19” throat depth.
16 gauge mild steel capacity.
Variable speed from 0 to 1,500 beats per minute.
Switch between rigid and non-rigid modes to suit your project.
Pullmax®-style mode for short stroke shaping and flanging.
Spring-slapping Yoder®-style mode for aggressive shrinking and planishing.

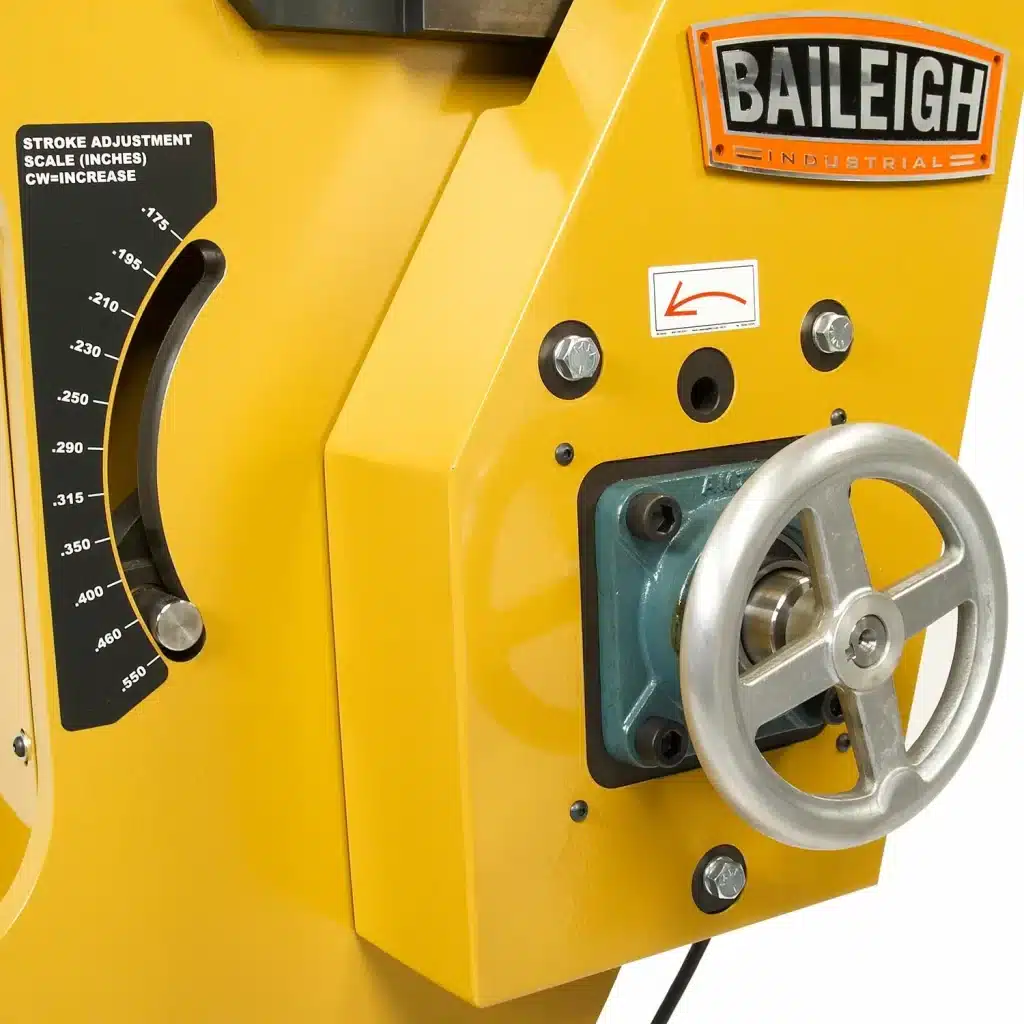

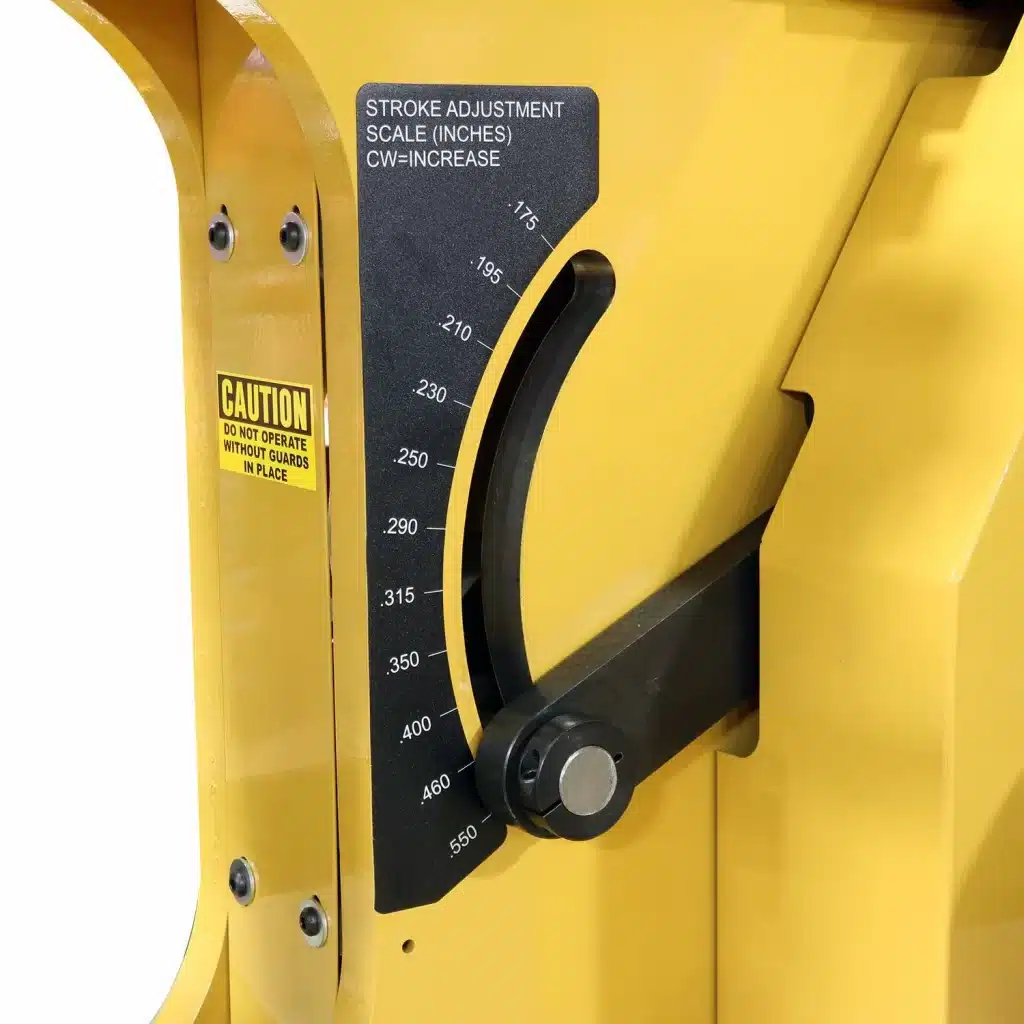

On-the-fly stroke adjustments range from .0175” to .550”.
Runs on 220-volt single-phase power.

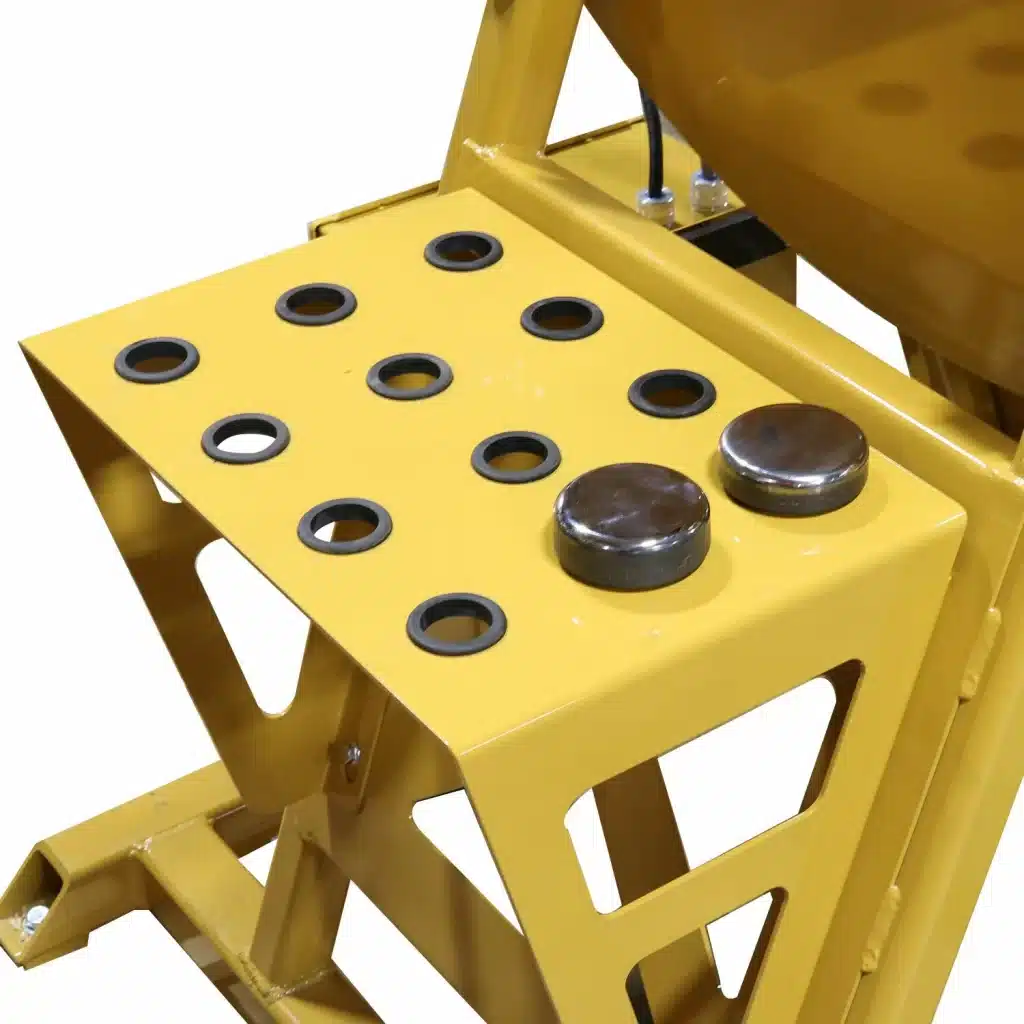

Includes starter shrinking and forming dies.
Die sets are available for shrinking, stretching, flanging, and making louvers. You can also create custom dies for the machine.

Weight	1600 lbs
Dimensions	60 × 48 × 84 in
Estimated Delivery	Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
F.O.B. Details	ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
Shipping Method	LTL Freight
Unloading Details	This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
Product Type	Forming and Shaping
