Baileigh R-M7 Radius Bender

$895.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

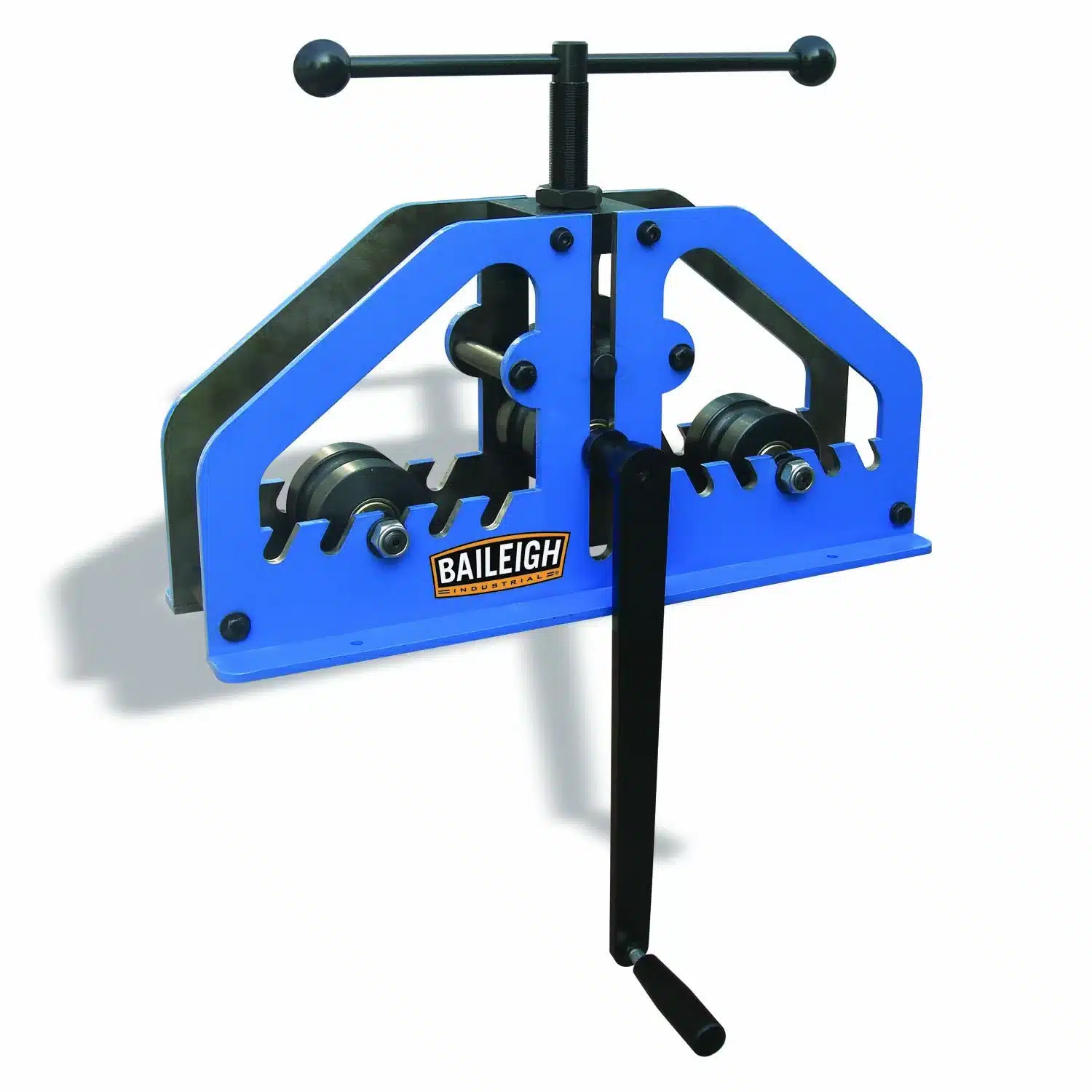

    The Baileigh R-M7 Radius Bender is a portable and durable steel machine designed for bending tube and pipe to large radii. It features a manual crank, precision ball bearings for smooth operation, and various tooling options for versatility. It can bend 1.5" pipe to a 20" radius and 2" round tube to a 60" radius, making it suitable for small shops. The machine includes 1-1/2" OD tube dies and comes with a 1-year parts warranty and lifetime technical support. Note that it is not intended for rolling complete circles.

    Warranty: 1 YearUPC: 731325411706 SKU: BA9-1006861 Categories: , ,

    Specifications

    Part Number R-M7
    Stock Number BA9-1006861
    Roll Adjustment Manual
    Pipe Capacity Size: 1.5″ / Min. Radius: 20″
    Round Tube Capacity Size: 2″ / Min. Radius: 60″

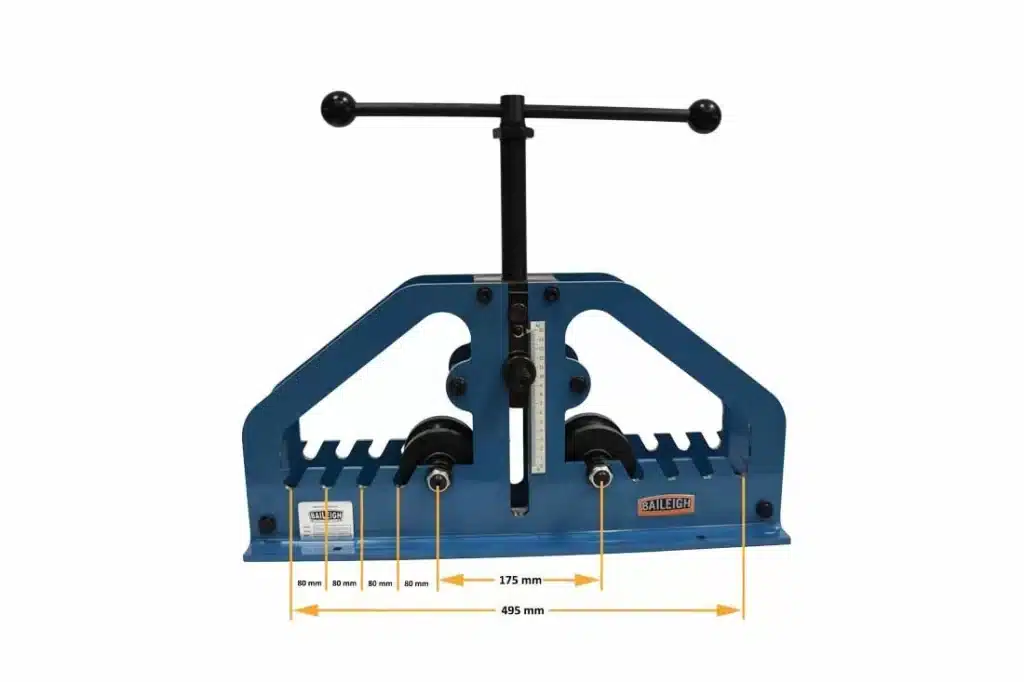

    Shaft Center Distance Adj. (lower rolls)
    Rectangle Capacity Size: 1 x 2″ / Min. Radius.: 10″
    Pinch Single
    Capacity Flat Bar Size: 1.25″ / Min. Radius.: 10″
    Power Manual
    Shipping Weight 83 lbs
    Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
    *Optional Tooling Some applications may require optional tooling.
    Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
    Shipping Dimensions 26″ x 10″ x 19″

    Baileigh R-M7 Radius Bender – BA9-1006861

    The portable radius bender R-M7 is built from quality steel (unlike most competing roll benders in this price range) and can bend tube and pipe to large radii.

    • Bends 1.5″ pipe to a minimum radius of 20″ and 2″ round tube to a minimum radius of 60″.
    • Manual crank makes quick work of large radius bends*.

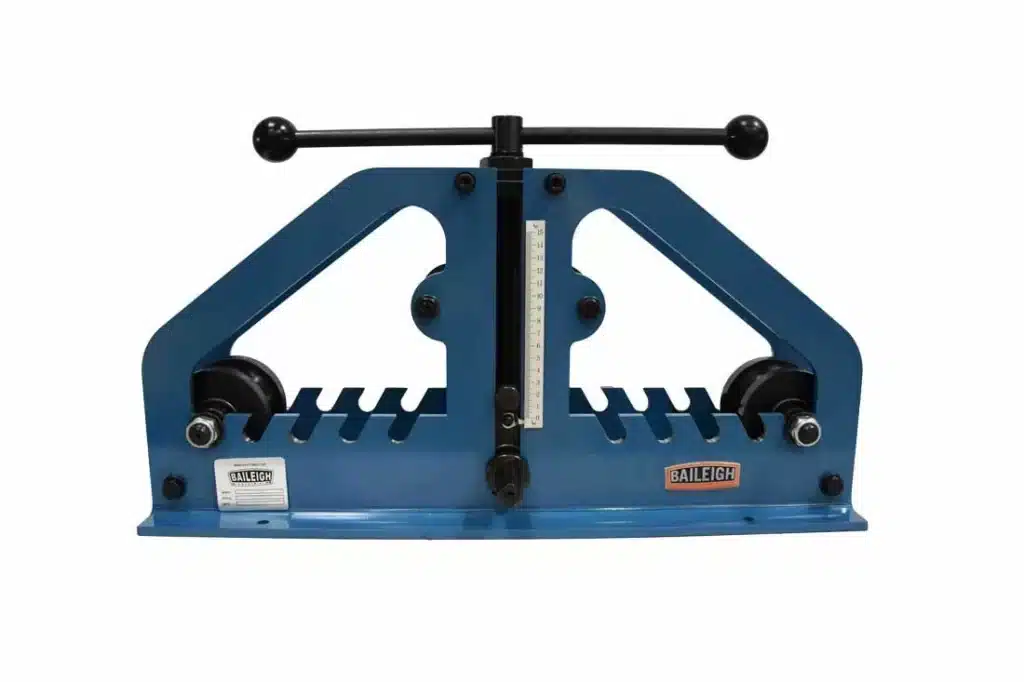

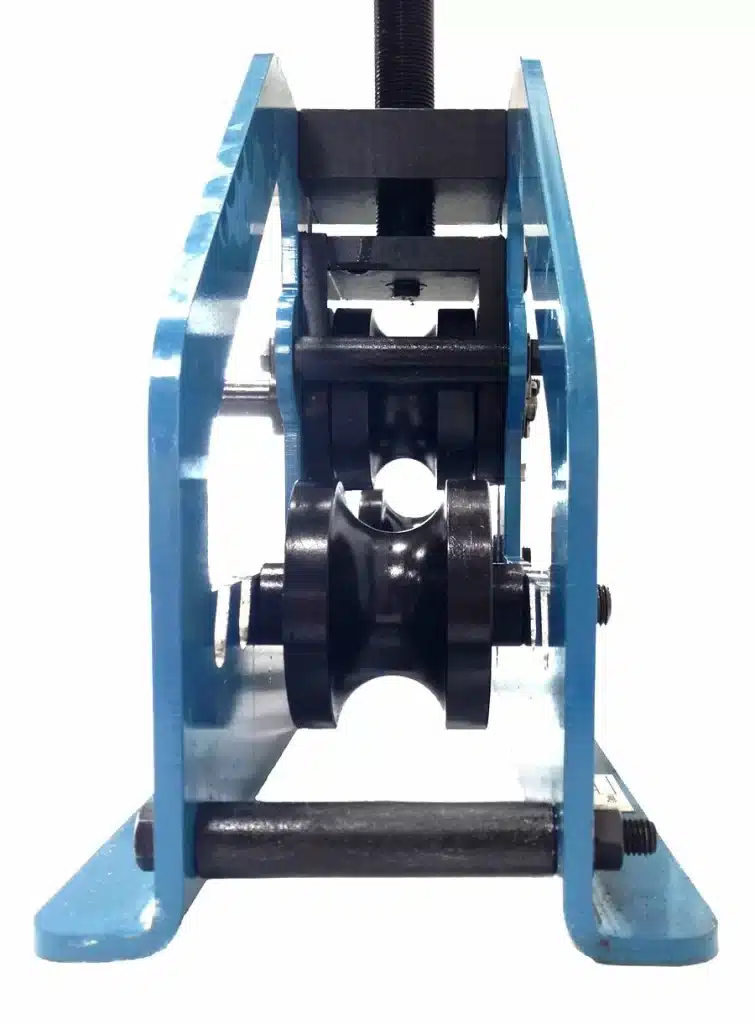

    • Shafts turn on precision ball bearings for the smoothest possible operation.
    • Many different tooling options, available from Baileigh, enable the machine to tackle a wide range of projects
    • Takes up little space and will easily fit into even the smallest shops.

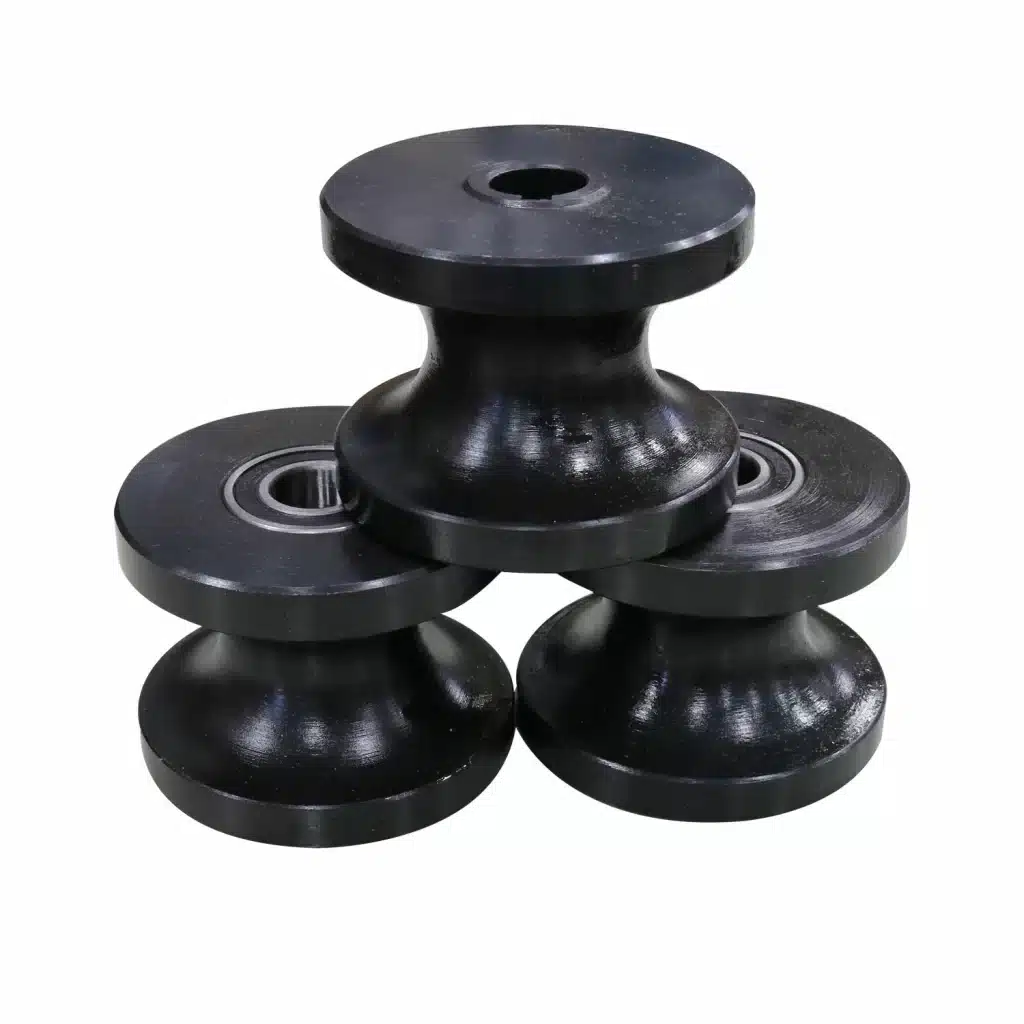

    • Includes a set of 1-1/2″ OD tube dies.
    • Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.

    * Please note that the R-M7 steel roll bender is not for rolling complete circles.

    Shipping Details

    Weight 83 lbs
    Dimensions 26 × 10 × 19 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    Shipping Method

    LTL Freight
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Tube & Pipe Benders
