Specifications
| Stock Number | BA9-1006176 |
|---|---|
| Accessories | Included Accessories |
| Center Distance (In.) | 80.313″ |
| Center Height | 10 |
| Compound Rest Travel | 10 |
| Range of Cross Feeds (MMPR) | 50 / .0185 – .52 mm / rev. |
| Cross Slide Travel (In.) | 12.5 |
| Input Power | 220V / 3-phase |
| Lead Screw Diameter | 1.5 |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Longitudinal Feeds Imperial Qty Speed | 50 / .0014″ – .0387″ / rev. |
| Longitudinal Feeds Metric Qty Speed | 50 / .037 – .983 mm / rev. |

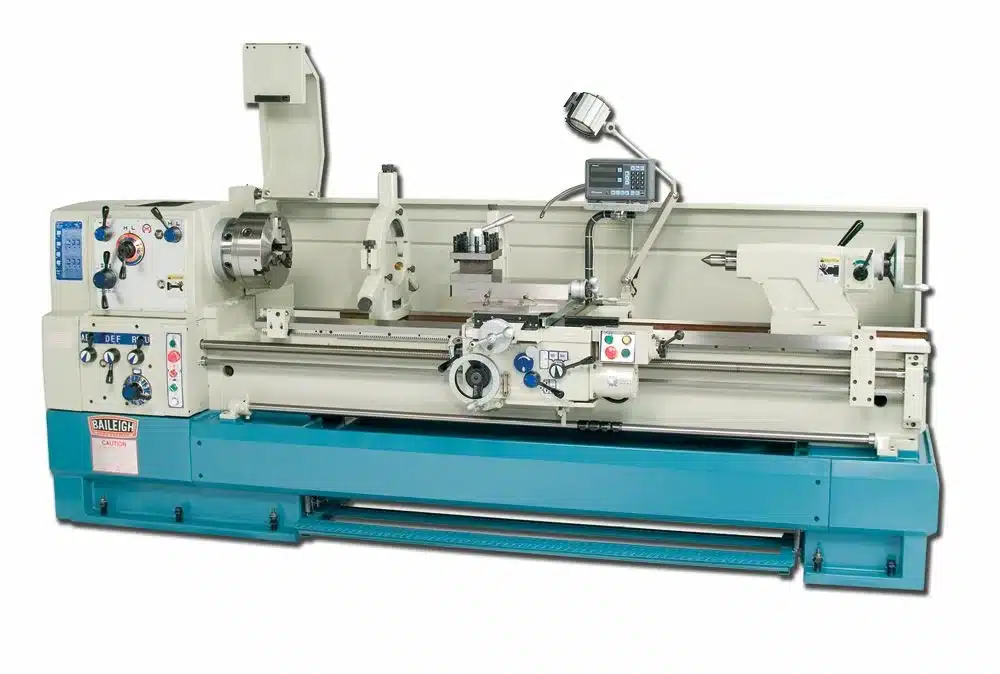

| Model Number | PL-2080 |
| Nose Radius (In.) | D1-8″ |
| Quill Taper | Morse #7 |
| Shipping Dimensions (L x W x H) (In.) | 141x53x66 |
| Spindle Bore (In.) | 3.125″ |
| Spindle Taper with Sleeve | Morse #5 |
| Swing Over Bed (In.) | 20″ |
| Swing Over Cross Slide (In.) | 13″ |
| Swing Through Gap (In.) | 26.375″ |
| Tailstock Spindle Travel (In.) | 6.3125″ |
| Taper in Tailstock Spindle | 2.9375″ |
| Weight (Lbs.) | 6050 |
| Width of Bed (In.) | 16.125″ |
| Speed (rpm) | 20 – 1550 rpm |
| Threads Diametrical Quality Speed (D.P.) | 50 / 4–112 D.P. |
| Threads Imperial Quality Speed (T.P.I.) | 60 / 2–112 T.P.I. |
| Threads Metric Quality Speed (mm pitch) | 60 / .2–14 mm pitch |
| Threads Modular Quality Speed (M.P.) | 50 / .2-7 M.P. |
