Specifications
| Stock Number | BA9-1012740A |
|---|---|
| Model Number | HSP-60M |
| Cylinder Movable | Yes |
| Distance From Table To Ram | Min. 10.04″ – Max. 39.57″ |
| Minimum Return Speed (In./Sec) | .303″ / sec. |
| Piston Diameter (In.) | 3″ |
| Speed (rpm) | 1440 |

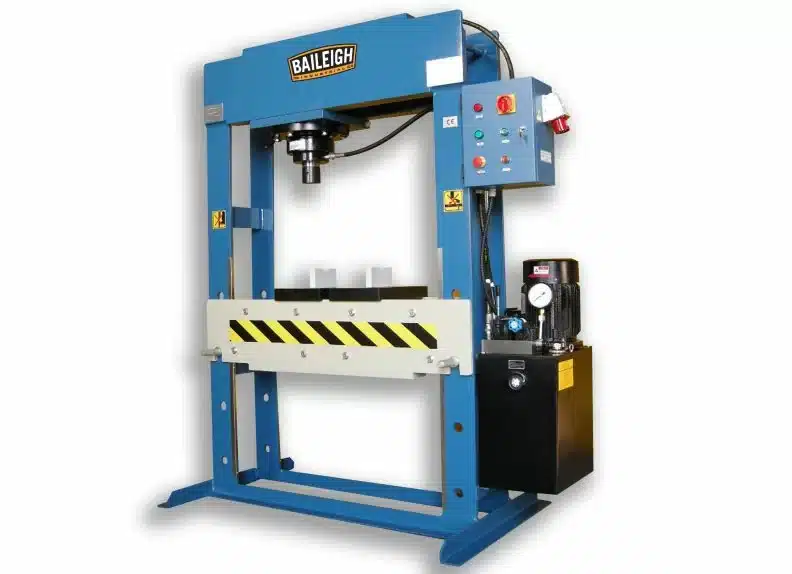

Baileigh HSP-60M Hydraulic Press
$17,995.00 CAD Funds
Choose an option below:
The Baileigh HSP-60M Hydraulic Press is a 60-ton capacity machine, powered by a 5 hp motor. It features a 41.25” working width and a 7.5” cylinder that moves left and right within the frame, making it ideal for off-center parts. The press is built with a fully-welded steel frame for durability and includes a 2-piece V-block set, a pressure gauge, and a rear safety cage.
If you’ve outgrown your pneumatic press, our HSP-60M 60-ton hydraulic press gives you the extra power of a 5hp motor and the rigid accuracy of a fully-welded heavy steel plate frame.
- 60-ton capacity.
- 41.25” working width.

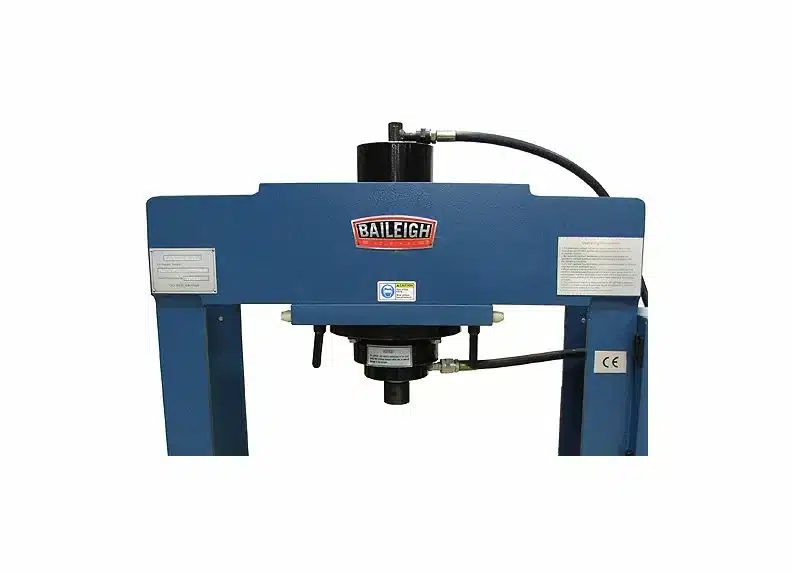

- 7.5” cylinder moves left and right within the frame, ideal for off-center parts.
- Controlled by a piston-style hydraulic pump.
- Includes 2-piece V-block set.
- Pressure gauge comes standard.
- Welded steel structure withstands the machine’s full force without flexing.
- Rear safety cage included (not shown in pictures)
- Baileigh covers this 60-ton hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone.
Shipping Details
| Weight | 159 lbs |
|---|---|
| Dimensions | 48 × 48 × 48 in |
| Estimated Delivery | Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing. |
| Shipping Method | LTL Freight |
| F.O.B. Details | ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON) |
| Unloading Details | This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity. |
| Product Type | Presses |
