Specifications
| Stock Number | BA9-1019289 |
|---|---|
| Approx. Pressure (Tons) | 30 Ton and 10 Ton |
| Model Number | HSP-30M-C |
| Weight (Lbs.) | 1060 |
| Cylinder Movable | No |

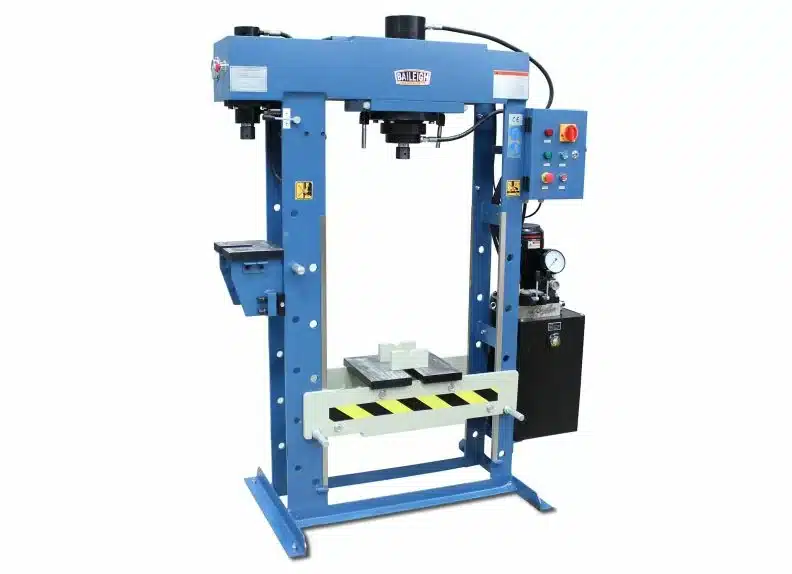

Baileigh HSP-30M-C Two Station Hydraulic Press
$9,995.00 CAD Funds
Choose an option below:
The Baileigh HSP-30M-C Two Station Hydraulic Press is a dual-capacity machine, offering 30 tons on the main press and 10 tons on the side press. It has a 27.5” working width, with a 9.8” stroke on the main press and a 7.75” stroke on the side press. The main press cylinder is movable for precise pressure application. It is powered by a 3 hp motor on 220V single-phase, and the machine is built with a fully welded steel frame for durability.
- 30-ton capacity on main press
- 10-ton capacity on side press
- 27.5” working width
- 5.74” diameter cylinder with 9.8” stroke on main press
- 2.76” diameter cylinder with 7.75” stroke on side press
- 3 hp motor runs on 200-volt single-phase power
- Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects

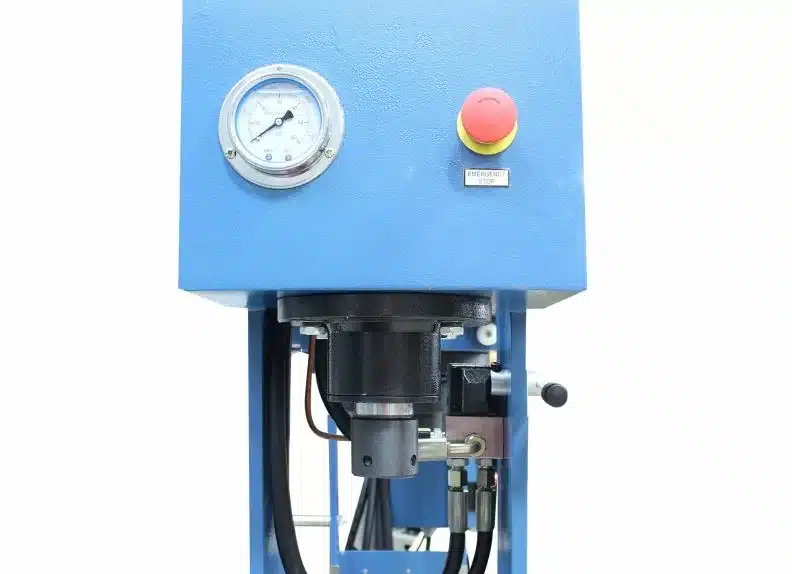

- Comes standard with dual pressure gauges

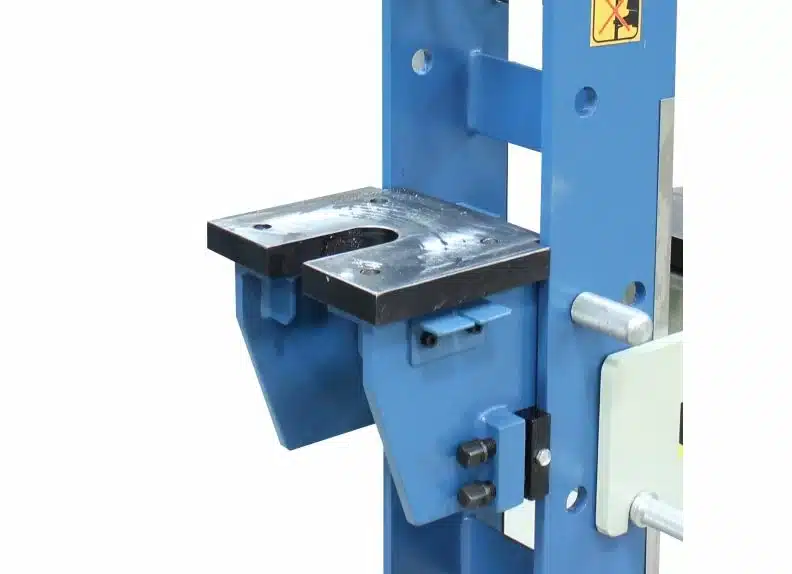

- Includes 2-piece V-block
- Fully welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing
Shipping Details
| Weight | 1060 lbs |
|---|---|
| Dimensions | 60 × 60 × 60 in |
| Estimated Delivery | Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing. |
| Shipping Method | LTL Freight |
| F.O.B. Details | ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON) |
| Unloading Details | This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity. |
| Product Type | Presses |
