Specifications
Item Number |
PR-613 |
Forming Width |
72″ |
Roll Speed |
5.85 rpm. |
Upper Roll Dia. |
4.75″ |
Roll Adjustment Back |
Hydraulic |
Minimum Forming Dia |
7.125″ |
Motor |
3 hp |
Capacity (Mild Steel) |
13 ga. (.090″) |
Power |
220V / 3-phase |
Shipping Weight |
4950lbs |
Shipping Dimensions (Inches) |
127x39x59 |
* specifications subject to change without notice.

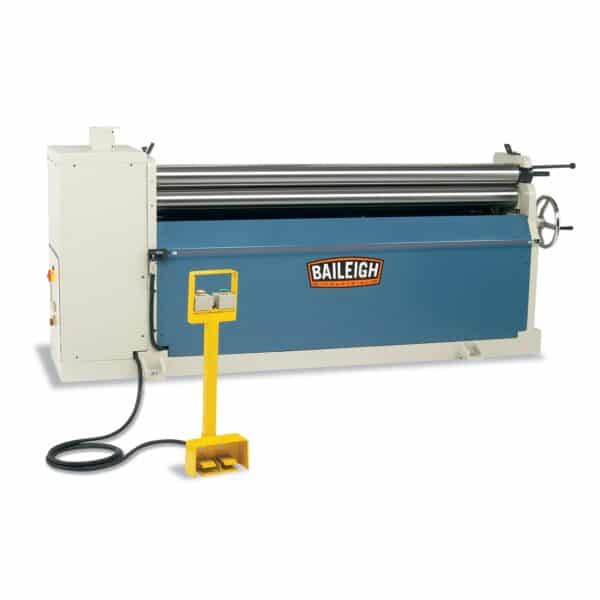

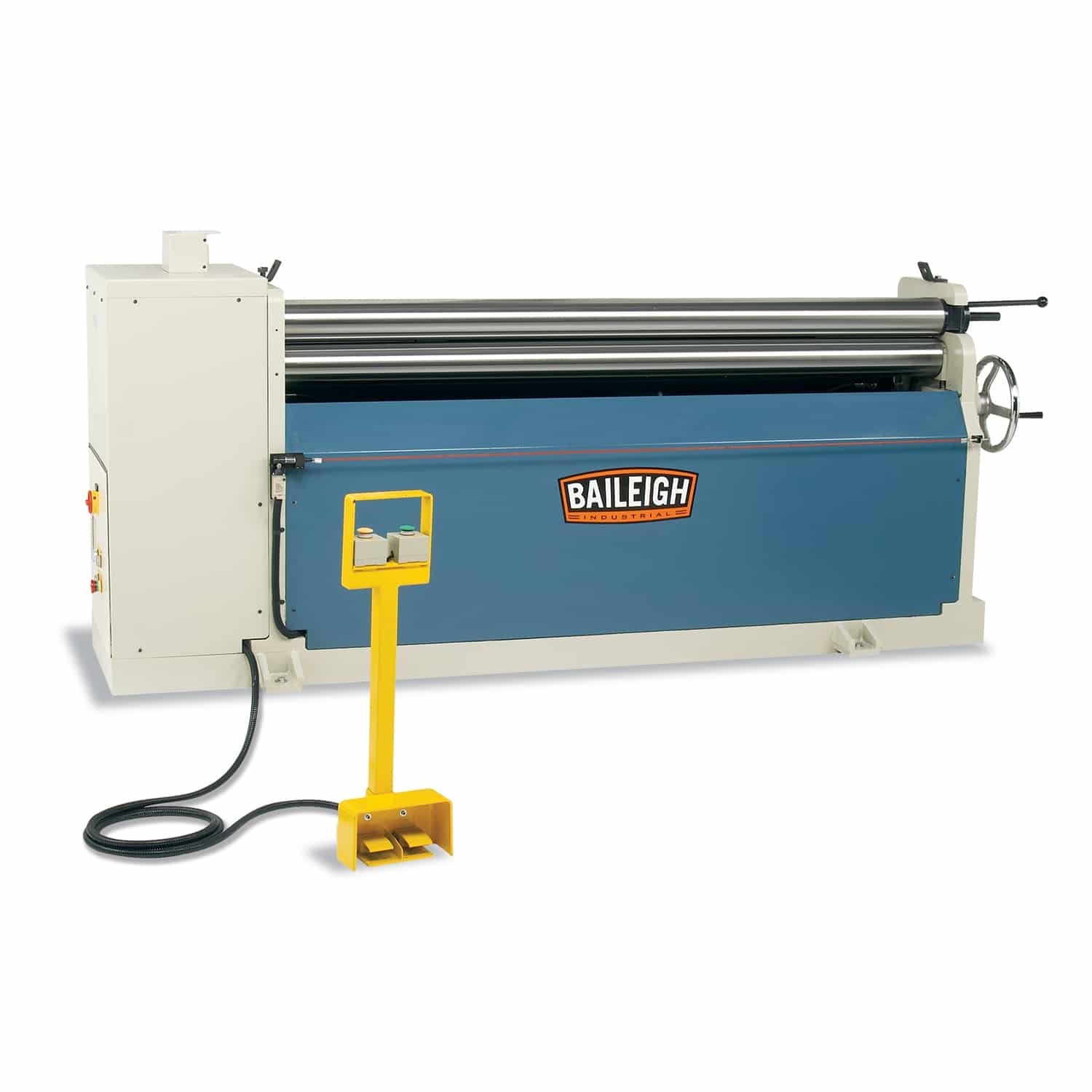

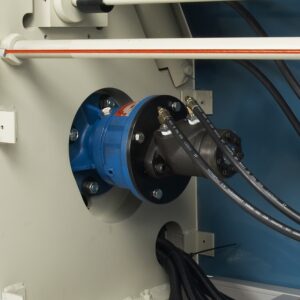

This hydraulic plate roller is just what every HVAC shop is looking for. All 3 rolls are hydraulically driven to increase the efficiency of the finished product. Order today and experience the quality of this hydraulic plate rolling machine for sale.
- 6’ working width.
- Bending capacity of 13 gauge mild steel across its full width.
- Can roll to a minimum diameter of 7-⅛” at maximum capacity.

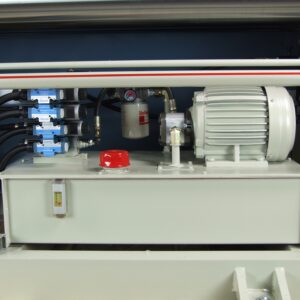

- 2 hp motor runs on 220 volt 3-phase power.

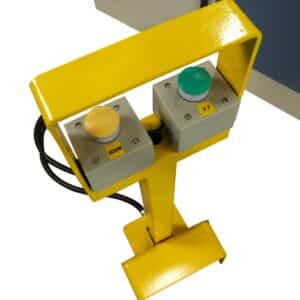

- Freestanding control pedestal makes it easy to manage bending functions; forward, reverse, up, and down.

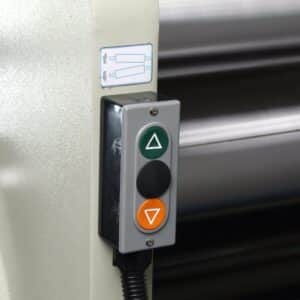

- Independent control box on the machine allows you to raise or drop one side of the back roll for accurate coning.

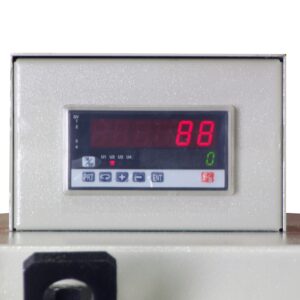

- Digital readout lets you know exactly where the roll is at all times.

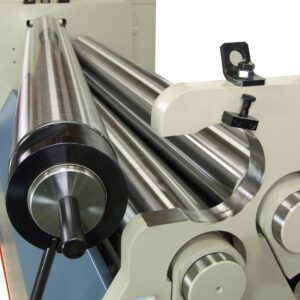

- Constructed from plate steel to ensure accuracy of the rolls.
- Steel framework is fully integrated and welded to help prevent flexing at full capacity.

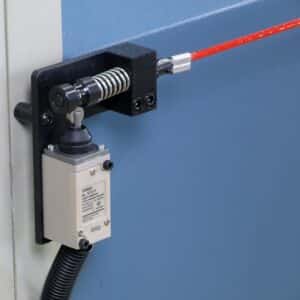

- Dual emergency stop cables, located on both the back and front of the machine, help keep you safe.
- Covered by a 1-year parts warranty.
- Comes with lifetime technical support by phone from our team of experienced reps.
