Arclight Dynamics: Arc Max Elite 5×10 CNC Plasma Table

• Cutting envelope: 62″ x 124″ x 6.5″
• Overall dimensions: 88”L x 143”W x 60”H
• Weight capacity: 2″ Thick Mild Steel
• Frame: Fully Welded Steel
• Positioning Accuracy: .001″
• Dimensions at base: 70″ x 133″
• Water pan capacity: 300 Gallons
• Table Power: 110V / 15-20A
• Overall Weight: 2350 pounds

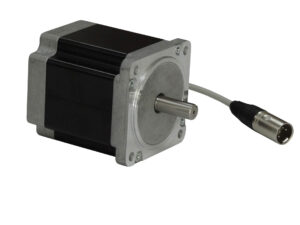

• Controller: Flashcut CNC

Go from Drawing to Toolpath to Cutting all in one.

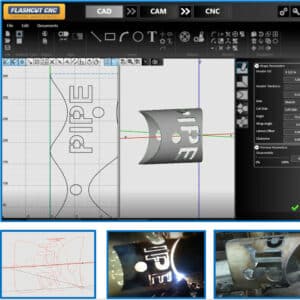

• Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
• Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)

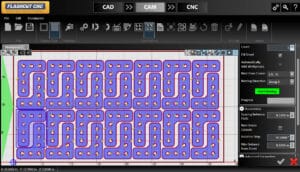

• Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting

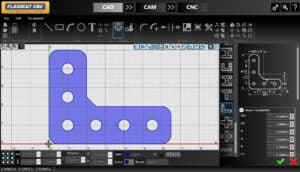

• Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
• Fix tool finds and corrects CAD mistakes instantly
• Easily bridge internal cut outs such as the center of an “O”

The Arc Max Elite frame is designed specifically to hold up to 3 inch Stainless Steel Plate across its entire cutting envelope.

• 3″ by 3″ steel tubing
• 3/16″ thickness wall steel tubing
• Fully welded unitized frame
• Gusseted Legs
• Powder coated frame
• Provides a rock solid base for fast accurate cutting
• Slat surface flush with side of table with built in rollers to assist in loading plate

Engineered low mass, high strength aluminum gantry

• Fast acceleration and deceleration
• Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
• 8.5″ clearance

Hiwin® Precision Linear Rails

• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available

Extra Deep Water Table

• 8 1/2″ deep 12g steel water pan
• Expanded metal barrier to catch small parts
• Reduces thermal distortion
• Longer runtime before annual cleaning
• Captures 90% of smoke and dust reducing airborne contaminants
• Cools parts quickly for immediate inspection
• Reduces heat affected zone
• Twin 1.25″ ball valve drains
